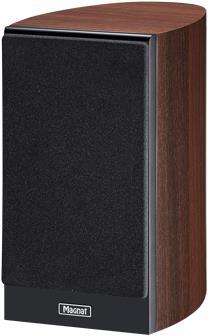

Magnat Quantum 723
1 pairProduct details

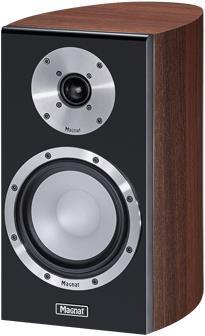

The 2-way bookshelf speakers of the Quantum 720 series are equipped with the same speaker chassis as their larger family members. Thus, the compact version also benefits from high-quality HRH tweeters with a 30 mm textile diaphragm, special damping, and ferrofluid cooling, a wide surround, and an aluminum Harmonic Radiation Horn.
The foundation is provided by the Klippel-optimized 170 mm mid-woofer with a ceramic-aluminum diaphragm. The stable MDF cabinet features rounded side panels and a resonance-optimized 25 mm front baffle that is finished in a silk-matte lacquer. An Airflex port with a rounded reflex opening eliminates airflow noise.
Application range | Hi-fi |
Loudspeaker construction | Passive speakers |
Nominal power | 110 W |
Audio channel | Stereo |
Documents | |
Item number | 6031436 |
Manufacturer | Magnat |
Category | Hi-fi + Home cinema speakers |
Manufacturer no. | QUANTUM 723 MOCCA |
Release date | 8.12.2016 |
Sales unit | 1 pair |
Loudspeaker construction | Passive speakers |
Audio channel | Stereo |
Application range | Hi-fi |
Speaker design | Bass reflex |

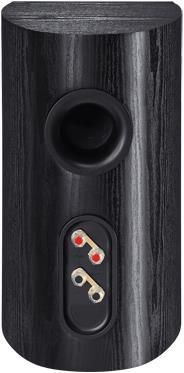

Bass reflex port | Rear port |
Colour | Brown |
Exact colour description | Mocha |
Gloss level | Gloss |
Material group | Wood |
Material | MDF |
Speaker principle | 2-way |
Recommended amplifier power | 20 - 90 Watt (W) |
Nominal power | 110 W |
Power handling capacity (max.) | 180 W |
Impedance | 4 - 8 Ohm |
Efficiency | 91 dB |
Connection Features | Bi-AMP |
Transmission range | 30 - 52000 Hz |
Crossover frequency | 3100 Hz |
Audio Connections | Screw terminals |
Number | 1 x |
Diameter | 170 mm |
Tweeter type | Dome tweeter |
Material | Fabric |
Number | 1 x |
Diameter | 30 mm |
CO₂-Emission | |
Climate contribution |
Width | 200 mm |
Height | 355 mm |
Depth | 310 mm |
Weight | 6.70 kg |
