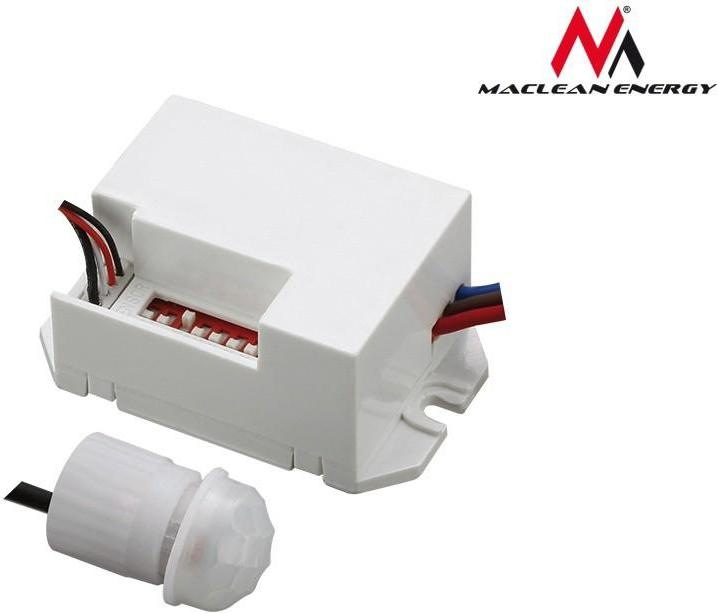

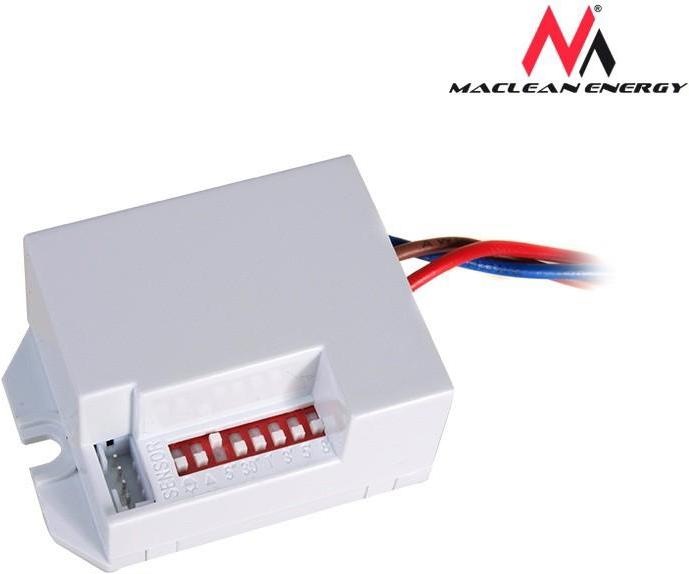

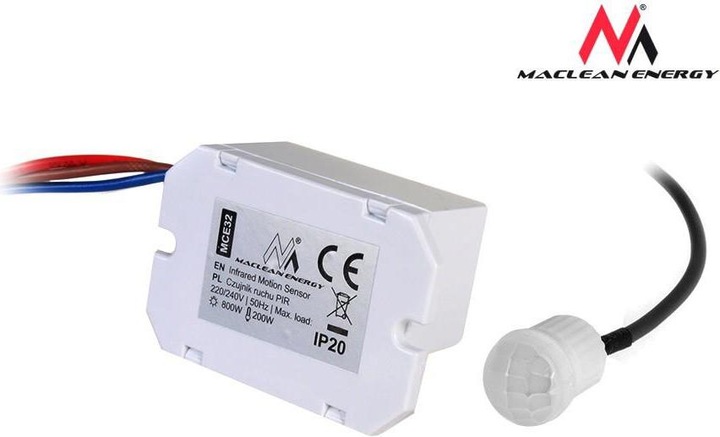

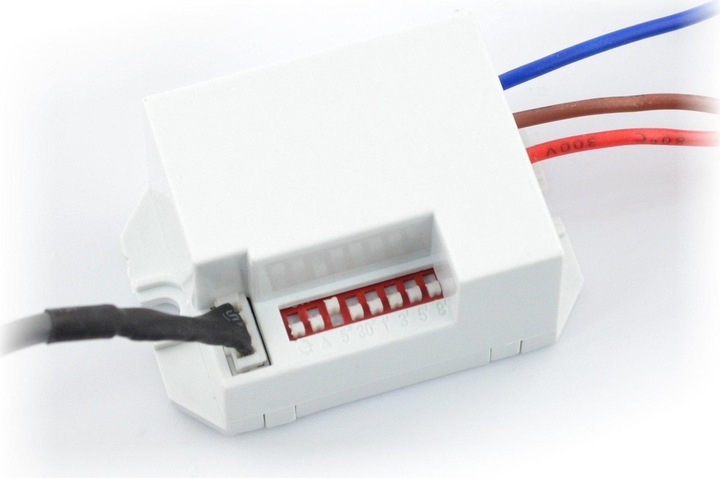

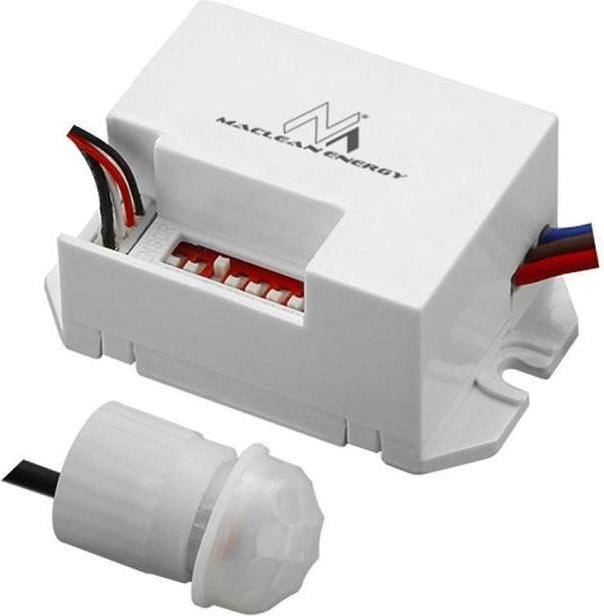

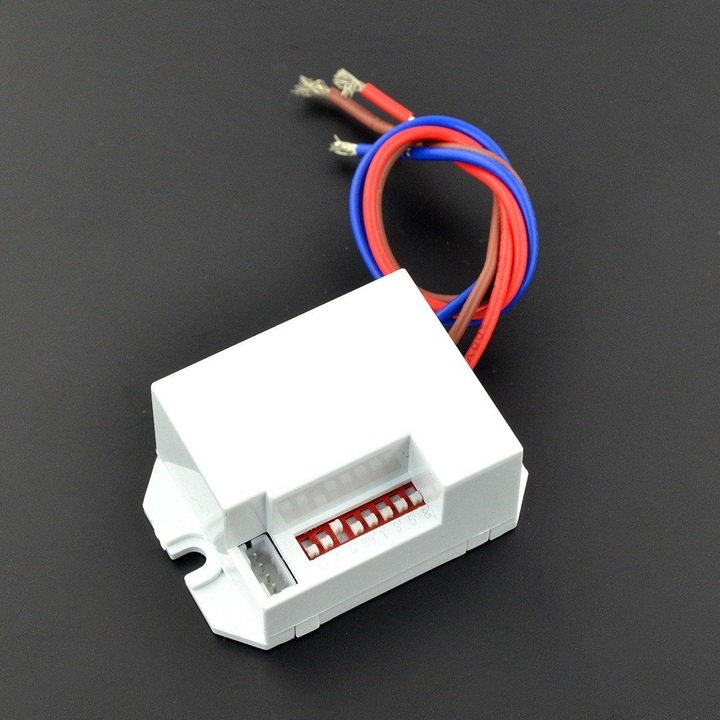

Maclean MCE32

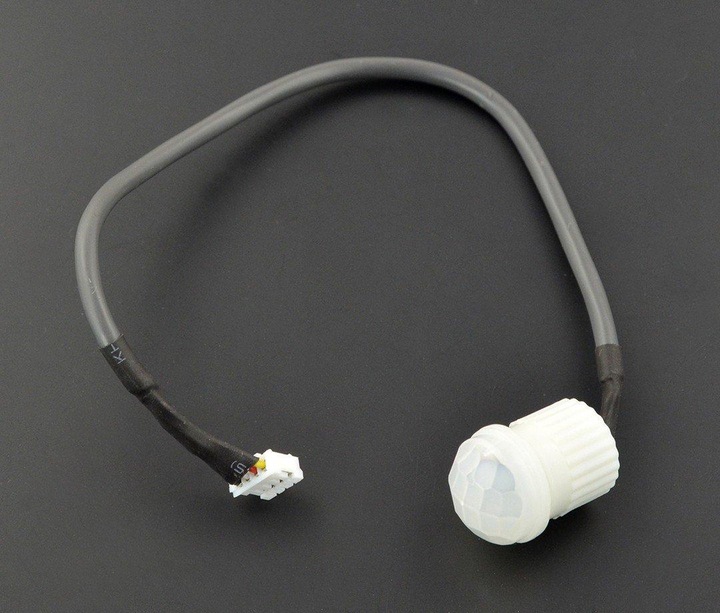

Passive motion detector, ideal for installation with a miniature lens. It can be used for the automatic control of electrical devices and is compatible with LED lighting – it activates devices when motion is detected.

The sensor enables the automatic control of lighting or other electrical devices, thus saving energy. The lighting is turned on by a PIR motion sensor that operates on an infrared basis. It activates the lighting when a heat-emitting object moves. A built-in light sensor allows the activation of the sensor function in daylight.

Technical specifications:

• Power supply: 220-240 V
• Network frequency: 50/60 Hz
• Viewing angle: 120° wall mount / 360° ceiling mount
• Sensor range: 3 to 6 m at 24°C (selectable)
• Light sensitivity range: 10 LUX / 2000 LUX (adjustable)
• Operating temperature: -20/+40°C

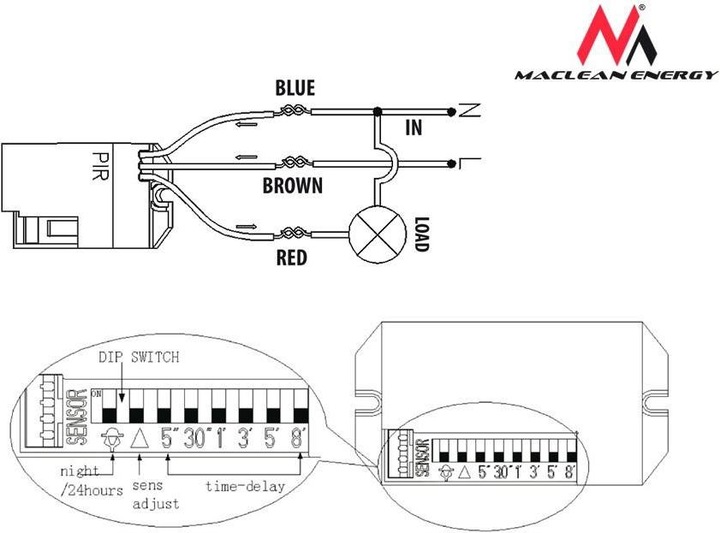

• Light duration: 5 s, 30 s, 1 min, 3 min, 5 min, 8 min (adjustable)
• Power consumption: approx. 0.5 W
• Mounting height: 1.8-2.5 m (wall mount)
• Mounting height: 2.2-4 m (ceiling mount)
• Protection class: IP20
• Max. sensor load: 800 W (incandescent bulbs), 200 W (energy-saving bulbs and LEDs)

The kit includes:

• Maclean MCE32 PIR motion detector
• User manual

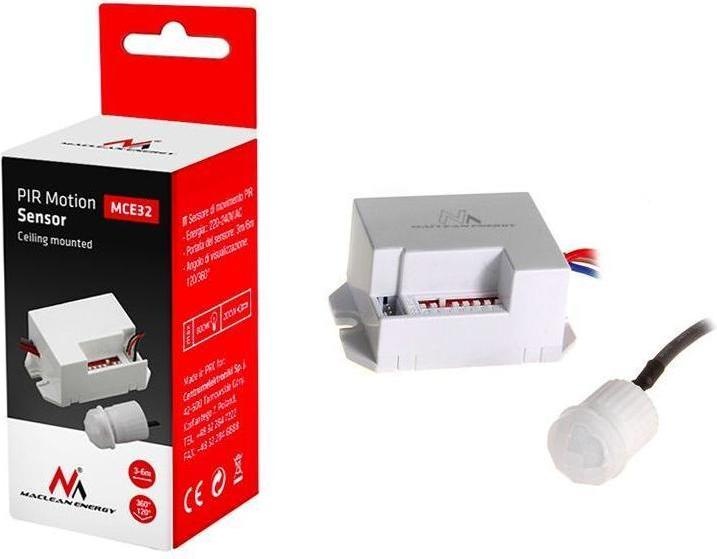

• Original manufacturer's packaging

Features:

• The device automatically identifies day and night. When the option (SUN) is set, the device during the day...
