Maclean Détecteur extérieur de mouvement infrarouge 360° MCE293 (Blanc)

High-Quality Infrared Motion Sensor

With our sensor, you save energy, as the light only turns on when you need it.

Detection angle: 360°.

The new generation of the infrared sensor offers high stability, an attractive and practical design, a wide operating voltage range, easy installation, and a large detection range. It automatically detects daylight and nighttime and is designed for the automatic control of lighting in homes, hotels, offices, stairwells, corridors, basements, restrooms, etc. Thanks to its IP65 protection rating, it can also be installed outdoors.

Technical Specifications:

• Rated voltage: 220-240 V/AC
• Rated frequency: 50/60 Hz
• Ambient light: < 3-20000 LUX (adjustable)
• Time delay: min. 10 sec / 5 min
• Rated load: max. 2000 W (standard bulb) / 1000 W (energy-saving lamp)
• Installation height: 2.2-4 m
• Detection range: max. 8 m (< 24°C)
• Detection area: 360°
• Operating temperature: -20 - +40°C
• Operating humidity: < 93% RH
• Motion detection speed: 0.6-1.5 m/s
• IP class: IP65
• Protection class against electric shock: II

Set includes:

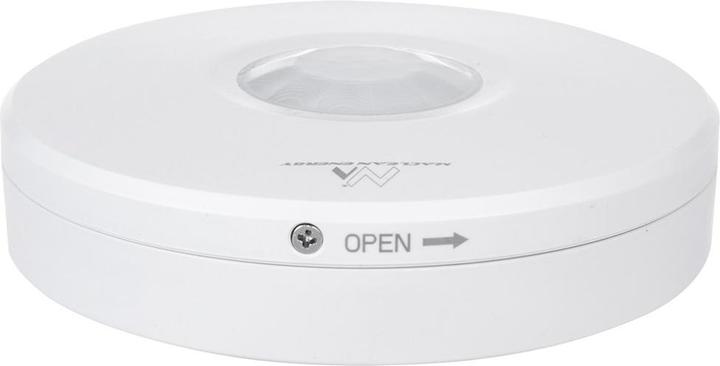

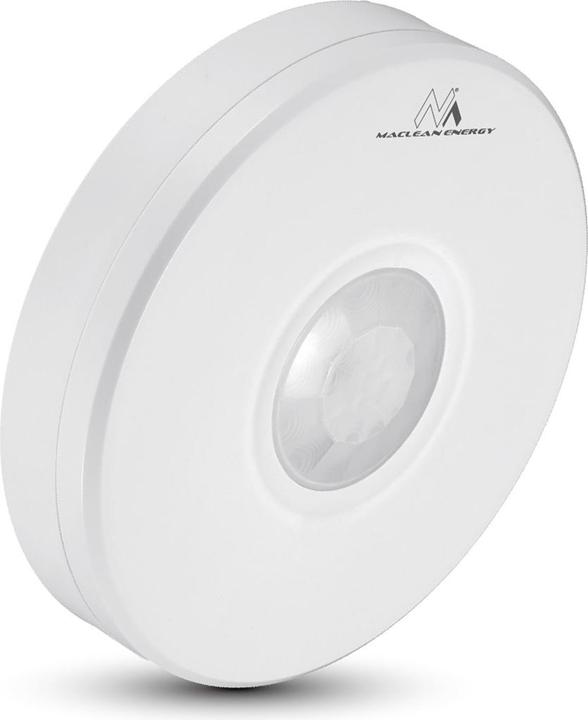

• Maclean Energy MCE293 W flat infrared motion sensor

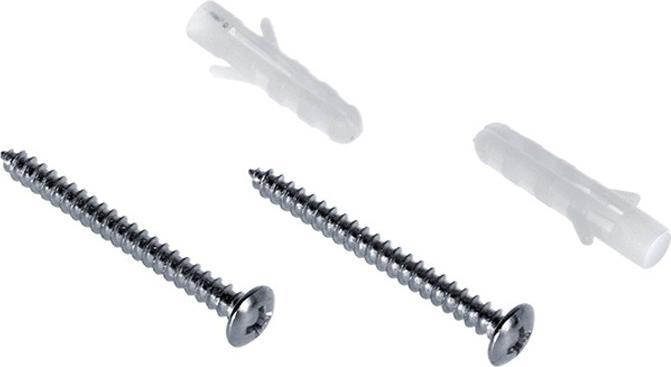

• Mounting pins
• User manual
• Manufacturer packaging

Features:

• Motion sensor that operates by turning on and then turning off the circuit after a certain time when an object emitting infrared radiation is detected.

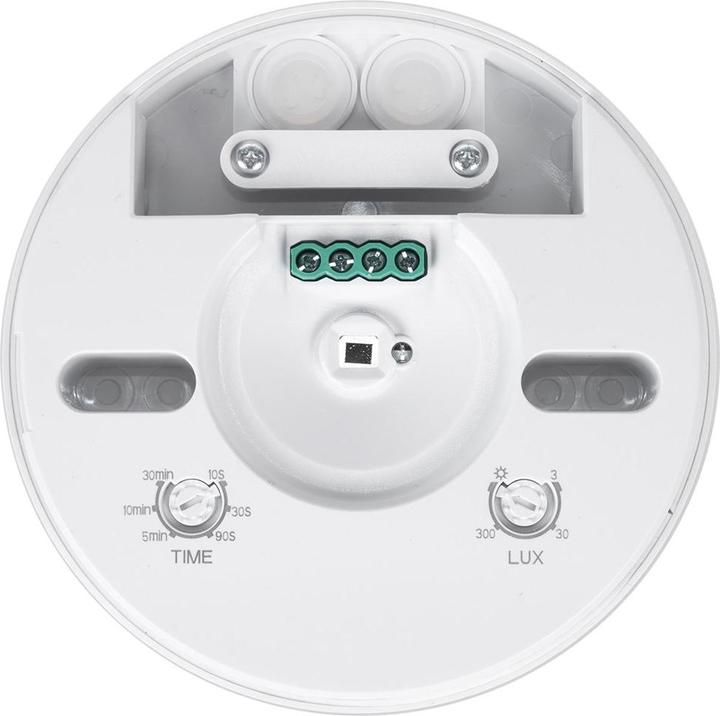

• The sensor has two knobs: The LUX dial allows you to set the threshold for light intensity (thanks to this function, it can be set to work only from dusk to dawn), and the TIME dial allows you to set the duration of the light activation.
• Easy installation with two dowels (included).
• Application: Automation of the process of turning electricity on and off.
