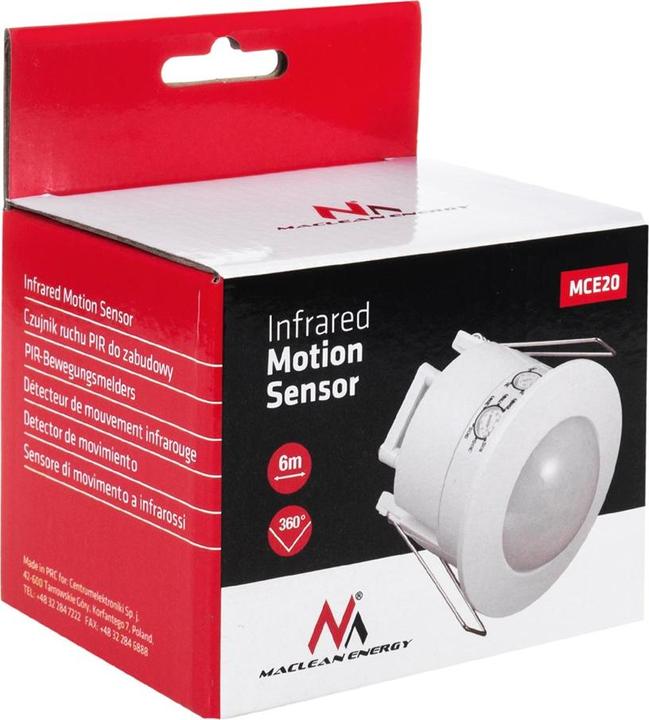

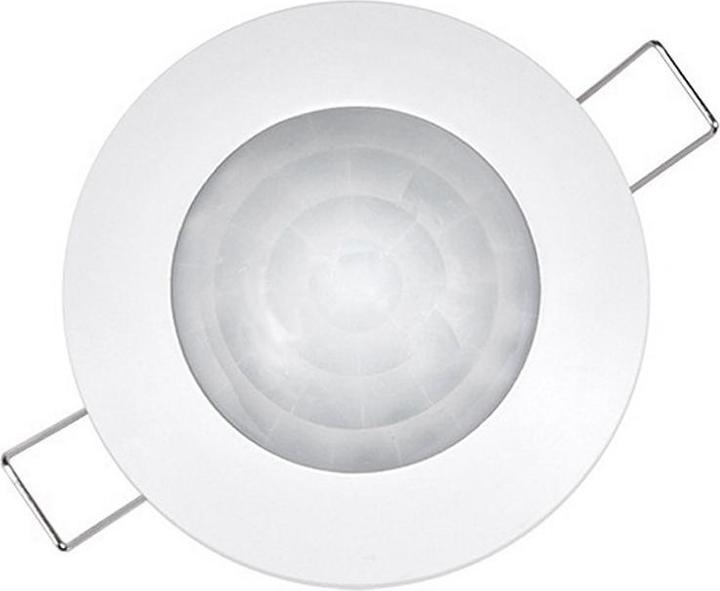

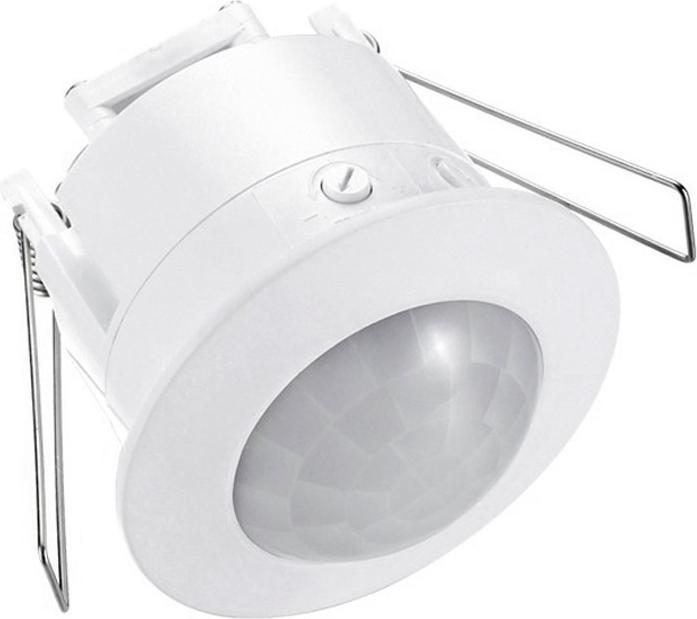

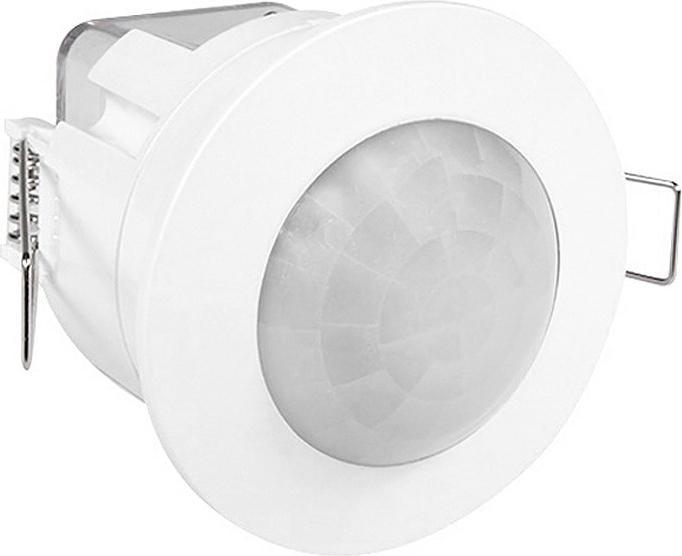

Maclean Ceiling mounted PIR motion detector MCE20

High-quality built-in ceiling motion and twilight sensor. With our sensor, you save on your electricity bill, as the lighting is only activated when you need it. Detection angle: 360°.

New generation - the infrared sensor offers high stability, an attractive and practical design, a wide operating voltage range, easy installation, and a large detection range. It automatically detects day and night light. Utilizes SMT technology, compliant with European standards. It is designed for automatic lighting control in homes, hotels, offices, staircases, hallways, basements, restrooms, etc.

Motion detector for installation in suspended ceilings (e.g., halogen lights). Made of plastic. The motion detection radius is up to 6 m, with a detection angle of 360°. The sensor features adjustable light duration and the ability to set the ambient brightness at which the device operates. Complete user manual included in Polish.

Technical specifications:

• Operating voltage: 220-240V AC / 50 Hz
• Detection angle: 360°
• Light sensitivity adjustment: 3-2000 LUX
• Detection range: up to 6 m (<24 °C)
• Motion detection speed: 0.6 ~ 1.5 m/s
• Maximum load: 1200W (300W inductive load)
• Operating temperature: -20 ~ +40 °C
• Humidity during operation: <93 % RH
• Installation height: 2.2m ~ 4.0m
• Protection class: IP20
• Sensor works seamlessly with LED lamps
• Lighting time adjustment:
• 10sec ± 3sec (min.)
• 7min ± 2min (max)
• Power consumption:
• 0.45W (operating mode)
• 0.1W (sleep mode)
• Dimensions:
• Diameter of mounting hole: 60mm
• Diameter of lens cover: 75mm
• Depth:...
