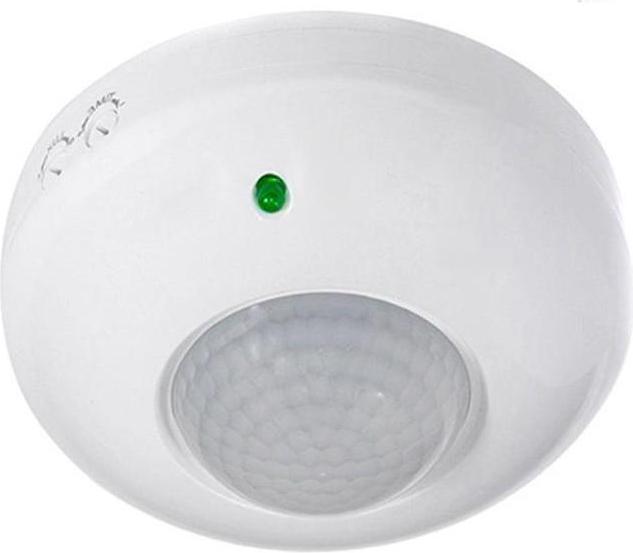

LP Ceiling PIR motion sensor MCE19

High-quality motion sensor for ceiling mounting. With our sensor, you save electricity, as the lighting only turns on when you need it.

Detection angle: 360°. New generation - the infrared sensor has high stability, a nice and practical design, a wide operating voltage range, easy installation, and a large detection range. Automatic detection of day and night light. Utilizes SMT technology, compliant with European standards. It is intended for automatic lighting control in apartments, hotels, offices, stairwells, hallways, basements, restrooms, etc.

Ceiling-mounted motion sensor 360° - a device for automating electrical processes while simultaneously saving energy. Brand new, high-quality product. Designed for indoor use. Packaging: colorful, aesthetic box.

Technical specifications:

• Operating voltage: 220-240V AC / 50 Hz
• Detection angle: 360°
• Light sensitivity adjustment: 3-2000 LUX
• Detection range: 6 m (<24 °C)
• Motion detection speed: 0.6 - 1.5 m/s
• Material: white plastic
• Operating temperature: -20 - +40 °C
• Humidity during operation: <93 % RH
• Installation height: 2.2m - 4.0m
• Protection class: IP20
• Lighting time adjustment: 10sec +/- 3sec (min.), 7min +/- 2min (max)
• Power consumption: 0.45W (operating mode), 0.1W (sleep mode)
• Maximum load: 1200W (standard bulb), 300W (energy-saving bulb)

Included in delivery:

• MCE19 PIR ceiling sensor
• Manufacturer's packaging
• User manual

Features:

• Operating voltage 220-240V AC / 50 Hz
• Detection angle: 360°
• Light sensitivity adjustment: 3-2000 LUX
• Detection range: 6 m (<24 °C)
• Motion detection speed: 0.6 - 1.5 m/s
• Protection class: IP20

Product features:

• Motion sensor that functions to turn on the circuit and turn it off again after a certain period.
