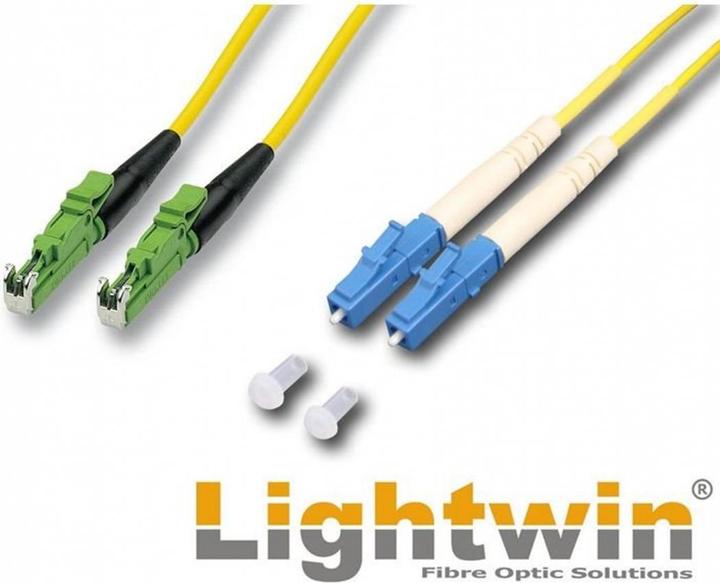

Lightwin Fiber optic patch cable E2000/APC-LC

Singlemode E2000/APC-LC Duplex OS2 5 m. Cable length: 5 m. Fiber quality: OS2. Duplex. Connectors: E2000/APC - LC. E2000 connector. The E2000 connector is suitable for singlemode and multimode fibers and is distinguished by its high data throughput. A special feature of the E2000 connector is a small flap that protects the user from emitted laser beams and the fiber end from dirt and damage. LC connector. The LC connector is a high-performance fiber optic connector for singlemode and multimode applications, known for its low insertion loss. It is one of the most common types of fiber optic connectors. The design of the LC connector is based on a single-fiber ceramic ferrule with a diameter of 1.25 mm for a fiber optic. Due to its compact design, the LC connector allows for high packing density, making it frequently used for fiber optic switches. APC - Angled Physical Contact. For connectors with the APC designation, the end face is not only convex but the normal of the fiber end face is additionally tilted a few degrees relative to the fiber axis. This design allows reflected light from the core to be refracted into the air through the cladding, thus preventing it from interfering with data transmission.
