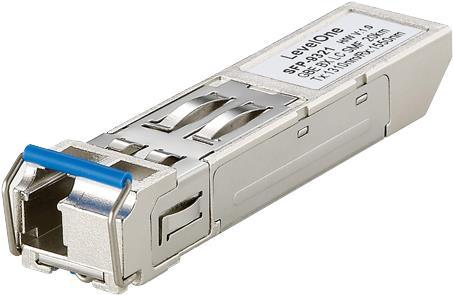

LevelOne SFP-9321 1.25G SMF BIDI SFP Transceiver 20km T1310/R1550nm

Ratings
Delivered between Tue, 17.6. and Thu, 19.6.
Only 2 items in stock at supplier

Product details

The LevelOne SFP-9321 is a powerful and cost-effective SFP transceiver. It offers up to 1.25 Gbps bidirectional data transmission over a single-mode fiber core for distances up to 20 km. The bidirectional SFP transceivers can transmit data in both directions through a single optical fiber by using different wavelengths for each direction.

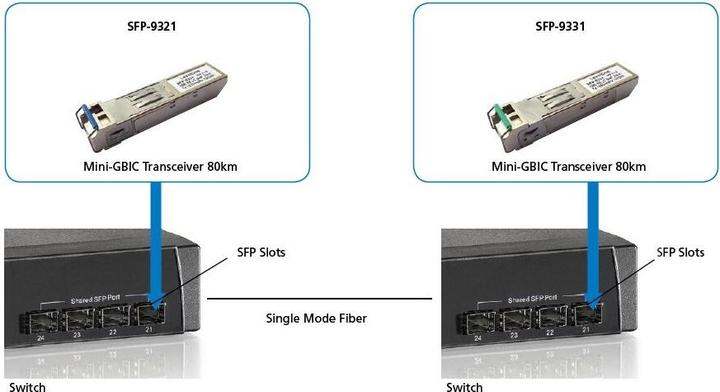

The SFP-9321 transceiver transmits at a wavelength of 1310 nm and receives at a wavelength of 1550 nm. When using a LevelOne SFP-9321 transceiver, you achieve bidirectional data communication (1310 nm TX and 1550 nm RX) over a single-mode fiber core.

  • 1310 nm FP LD
  • Multiple data rates: 125 Mbps to 1.25 Gbps, NRZ
  • Single +3.3 V power supply
  • RoHS compliant and lead-free
  • AC/AC differential electrical interface
  • Compatible with Multi-Source Agreement (MSA)
  • Simplex LC connector
  • Compliant with IEEE-802.3z specification for Gigabit Ethernet at 1.25 Gbps
  • Compliant with ANSI specification for fiber optic applications at 1.06 bps
  • No configuration or installation software required
  • Eye safety designed to meet LASER Class 1 according to EN60825-1.

Key specifications

Module type
SFP
Wavelength
1550 nm
Transmission
Single Mode
Item number
10343050

General information

Manufacturer
LevelOne
Category
Transceivers
Manufacturer no.
551092
Release date
22.1.2019
External links
Manufacturer's site (de)

Transceiver properties

Module type
SFP
Transmission
Duplex
Wavelength
1550 nm
Max. Transmission range
20000 m
Transmission
Single Mode
Interface
SFP+
Data throughput
1.25 Gbit/s

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
R1550nm, SFP-9321 1.25G SMF BIDI SFP Transceiver 20km T1310

Product dimensions

Length
56.50 mm
Width
13.70 mm
Height
8.95 mm
Weight
20 g

Package dimensions

Length
13.30 cm
Width
7.90 cm
Height
5.40 cm
Weight
58 g
