LevelOne Fgp-1000: 8 Fe Poe+1 Ge+1 Ge Sfp

10 Ports
Ratings
Delivered between Tue, 27.5. and Fri, 30.5.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

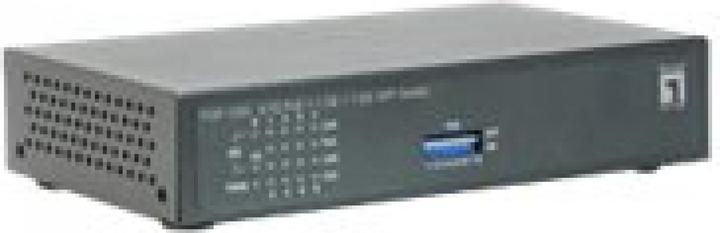

LevelOne FGP-1000, 10-Port Fast Ethernet PoE Switch, 120W

The FGP-1000 is an 8-port 10/100Mbps Fast Ethernet switch with Power over Ethernet (PoE) capability. With 8 DIP switches, each PoE port can be manually configured for on-off control. The FGP-1000 supports up to 30 W on each LAN port when the DIP switch is in the ON position. Using a LevelOne PoE repeater, it is possible to extend the connection by an additional 100 meters or even daisy-chain multiple PoE repeaters for longer distances. Two 10/100Mbps ports can be connected to other edge switches or NVRs as uplink ports.

Features:

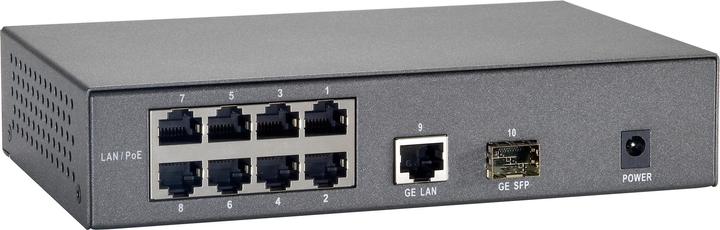

  • 8x Fast Ethernet PoE ports, 1x Gigabit port, and 1x Gigabit SFP slot
  • PoE on/off control per port via DIP switch
  • PoE power: up to 30 W per port (max. 120 W total)
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Easy plug and play installation
  • Standards:
  • IEEE 802.3 10-BASE-T, Ethernet
  • IEEE 802.3u 100-BASE-TX, Fast Ethernet
  • IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
  • IEEE 802.3x Full-duplex Flow Control
  • Mounting: Desktop mount
  • Dimensions: 188 x 118 x 38 mm
  • Weight: 1.5 kg.

Key specifications

Max. port speed
1000 Mbit/s
Network connections
RJ45 (9x), SFP (1x)
Switchtype
Desktop switch, PoE Switch
Number of PoE ports
9 Ports
Management
Unmanaged
Switch functions
PoE
Item number
5826365

General information

Manufacturer
LevelOne
Category
Network switches
Manufacturer no.
520831
Release date
2.7.2016
External links
Manufacturer's site (de)

Colour

Colour
Black, Grey
Exact colour description
Black, Gray

Switch properties

Switchtype
Desktop switch, PoE Switch
Number of ports
10 Ports
Number of PoE ports
9 Ports
PoE Standard
802.3at (PoE+)
PoE budget
115 W
Management
Unmanaged
Switch functions
PoE
switching layer
Layer 2
Switching capacity
5.60 Gbit/s
MAC adress table size
4096
Manufacturer Type
FGP-1000

Network connections

Network connections
RJ45 (9x), SFP (1x)
Max. port speed
1000 Mbit/s
Max. port speed RJ45
1000 Mbit/s
Max. Port Speed Fiber
1 Gbit/s
Max. Port speed
1000 Mbps / 1 Gbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant
Power consumption
120 W

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
11.80 cm
Width
18.80 cm
Height
3.80 cm
Weight
1200 g

Package dimensions

Length
37.50 cm
Width
23 cm
Height
8.20 cm
Weight
1.83 kg
