LevelOne FEP-1601: 16 port switch, PoE+

16 ports
Ratings
BrandMore from LevelOne
Delivered between Tue, 28.7. and Thu, 30.7.
Only 1 piece in stock at supplier
free shipping

Show all

Product details

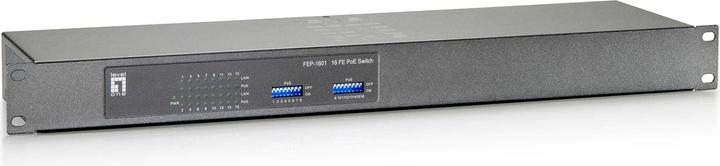

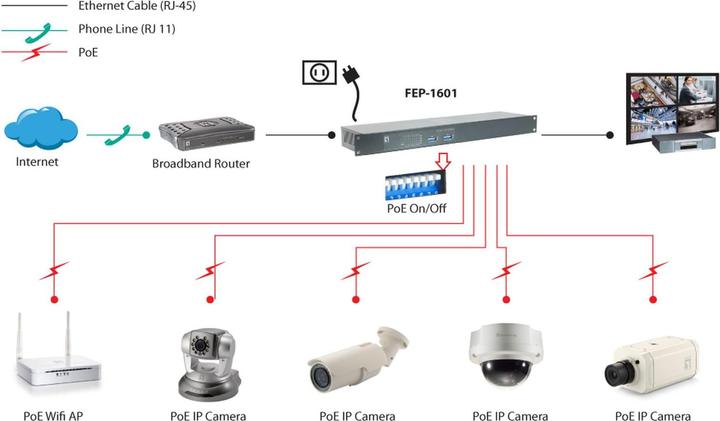

FEP-1601 is a 16-port 10/100Mbps Fast Ethernet switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for on-off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position. Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

  • IEEE 802.3x flow control protects against lost packets for reliable data transmission
  • 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • PoE on/off control per port by dip switches
  • Total PoE power budget: 250W, up to 30W per port
  • 19-inch metal housing.

Key specifications

Switch type
PoE switch, Rack switch
Number of PoE ports
16 ports
PoE Standard
802.3at (PoE+)
Management
Fully managed
Switch functions
PoE, Quality of Service (QoS)
Network connections
RJ45 (16x)
Max. port speed
100 Mbit/s

General information

Item number
5827208
Manufacturer
LevelOne
Category
Network switches
Manufacturer No.
520833
Release date
2.7.2016

Colour

Colour
Grey
Exact colour description
Metallic grey

Switch properties

Switch type
PoE switch, Rack switch
Number of ports
16 ports
Number of PoE ports
16 ports
PoE Standard
802.3at (PoE+)
PoE budget
240 W
Management
Fully managed
Switch functions
PoE, Quality of Service (QoS)
switching layer
Layer 2
Switching capacity
3.20 Gbit/s
MAC adress table size
4096
IGMP Snooping
V3

Network connections

Network connections
RJ45 (16x)
Max. port speed
100 Mbit/s
Max. port speed RJ45
100 Mbit/s

Application range

Application range
Business, Network

Mains supply properties

Network operation
Power supply internal, Powered device

Power

Power consumption
250 W

Origin

Country of origin
China, Germany, Taiwan

Voluntary climate contribution

CO₂ emissions
54.7 kg
Climate contribution
CHF 1.30

Scope of delivery

Scope of delivery
AC Cables

Product dimensions

Length
11.80 cm
Width
48 cm
Height
4.40 cm
Weight
2200 g

Package dimensions

Length
55 cm
Width
26.50 cm
Height
10 cm
Weight
2.57 kg
