Lenovo ThinkCentre M90a Gen 5 AIO (24")

512 GB, 32 GB, Intel Core i5-14500
Delivered between Wed, 17.12. and Thu, 18.12.
More than 10 pieces in stock at supplier
free shipping

Processor type2

Total memory2

Product details

An enrichment for every workplace

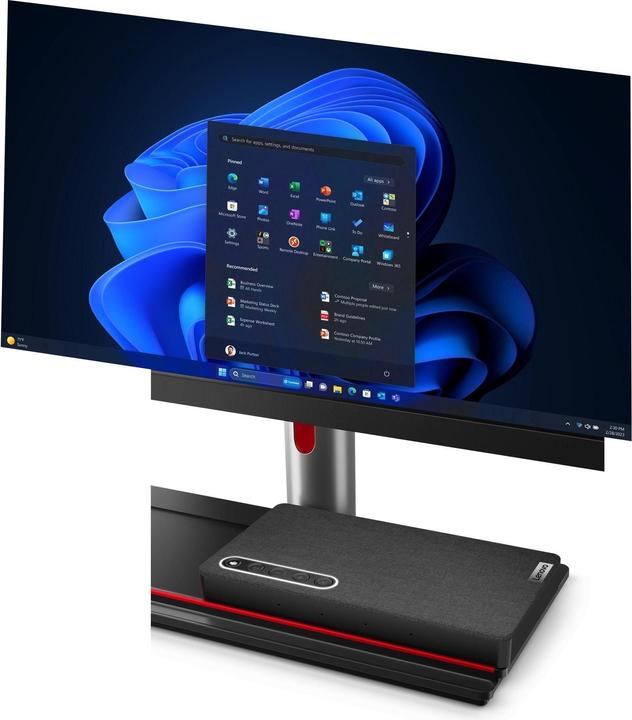

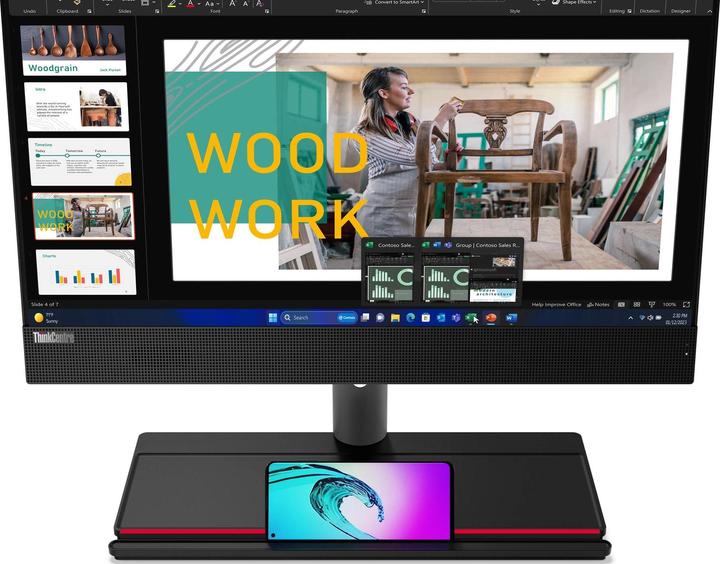

The Lenovo ThinkCentre M90a Gen 5 All-in-One with its slim design is a powerful PC. It offers high-quality features with up to Intel vPro® platform, powerful 14th generation Intel® Core™ processors and a stunning FHD display, with or without touch function. It is also available with an optional dedicated graphics card, ideal for video editing or design work, as well as a range of stands, including a full-featured stand with adjustable tilt, height, swivel and swivel functions. It even has a docking option for your smartphone and keyboard to keep your workspace organised.

For much smarter working
Thanks to our Intelligent Cooling Engine (ICE) 6.0, the ThinkCentre M90a Gen 5 All-in-One offers different performance modes to suit your different needs. You can choose between a 15% performance boost, a super-quiet mode that reduces system noise by up to three decibels, or maximum cooling power. This state-of-the-art PC also has an optional intelligent presence detection function that improves both security and energy efficiency by recognising when you are not near your device.

Protects your data, ideas and more
Experience unrivalled security with ThinkShield, the comprehensive security suite included with every ThinkCentre. The ThinkCentre M90a Gen 5 All-in-One PC also utilises up to Intel vPro® for robust, hardware-based device protection. Additional security measures include BIOS-based Smart USB Protection and an optional physical camera cover that allows you to open and close the webcam for added privacy.

Key specifications

Processor family
Core i5 14th Gen
Operating System Version
Windows 11 Pro
Video connections
DisplayPort (1x)HDMI (1x)
Network connections
RJ45 (1x)
PC type
All in One PC
Exact USB ports
USB-A 3.2 Gen 1 (3x)USB-A 3.2 Gen 2 (3x)USB-C 3.2 Gen 2 (1x)
Item number
52516724

General information

Manufacturer
Lenovo
Category
PC
Manufacturer no.
12SH002MMZ
Release date
31.10.2024
Sales rank in Category PC
603 of 10962

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
All in One PC

Operating system

Operating system
Windows
Operating System Version
Windows 11 Pro
Language
DutchEnglishFrenchGermanItalian
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
Core i5 14th Gen
Processor type
Intel Core i5-14500
Clock frequency
2.60 GHz
Max. turbo clock rate
5 GHz
Max. TDP
154 W
Number of processor cores
14 -Core
Number of performance cores
6 -Core
Clock frequency performance cores
2.60 GHz
Max. Turbo Clock frequency Performance Cores
5 GHz
Number of efficiency cores
8 -Core
Clock frequency Efficiency cores
1.90 GHz
Max. Turbo Clock frequency Efficiency Cores
3.70 GHz
Number of threads
20
Cache
24 MB
Socket
LGA 1700

Processor cooling properties

Processor cooling type
Air cooled

Memory

Memory
32 GB
Memory configuration
2 x 16GB
Max. supported memory
64 GB
Memory type
DDR5 RAM
RAM speed
4800 MHz
Set clock frequency
4800 MHz
Memory form factor
SO-DIMM
Number of memory slots
2
Number of free memory slots
0

Data storage controller

Data storage controller
Intel Q670

Data storage overview

Disk type
SSD
Total capacity
512 GB
Form factor
M.2 2280

SSD properties

SSD capacity
512 GB

Motherboard properties

Motherboard model
Intel Q670
Chipset
Intel Q670

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
UHD Graphics 770

Network

Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
BluetoothWi-Fi
Bluetooth version
5.3

Wi-Fi

Wi-Fi standard
Wi-Fi 6 / 802.11ax

Audio properties

Chip
Realtek ALC233VB2
Audio channel
Stereo

PC case properties

Form factor
All-in-one

Connections

USB ports
USB-AUSB-C
Exact USB ports
USB-A 3.2 Gen 1 (3x)USB-A 3.2 Gen 2 (3x)USB-C 3.2 Gen 2 (1x)
Video connections
DisplayPort (1x)HDMI (1x)
Network connections
RJ45 (1x)
Audio Connections
Jack 3.5mm (1x)

Optical drive properties

Optical drive type
No drive

Power supply properties

Power supply
180 W

Display properties

Display size (inches)
23.80"
Image resolution
1920 x 1080 pixels
Screen surface
Anti-glare
Screen technology
LCD
Panel technology
IPS
Display functions
Integrated cameraIntegrated loudspeakersIntegrated microphone

Supplied peripherals

Mouse
Standard mouse (wired)
Keyboard
Standard keyboard (wired)
Keyboard layout
Swiss
Numeric keypad
With numeric keypad

Origin

Country of origin
China

Sustainability

Sustainability
Improved materialsImproved production
Sustainability label
EPEAT GoldTCO Certified
Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
21.73 cm
Width
53.96 cm
Height
50.19 cm
Weight
8.13 kg
