Legrand VideoSet 20 with monitor 4.3' white

Video Set 4.3" Classic 2.0

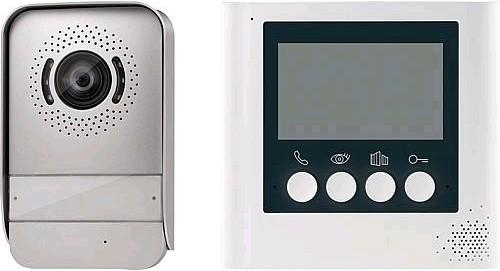

This intercom system features a 2-wire technology suitable for a single-family home, with the option to expand to a two-family set. It is configurable via jumpers and includes a surface-mounted video door station made of die-cast metal, designed to be vandal-proof and weather-resistant (dimensions: 160x100x36 mm). The system offers microphone and speaker adjustments, a wide-angle camera with a vertical field of view of 95° and a horizontal field of view of 125°, as well as LED object lighting.

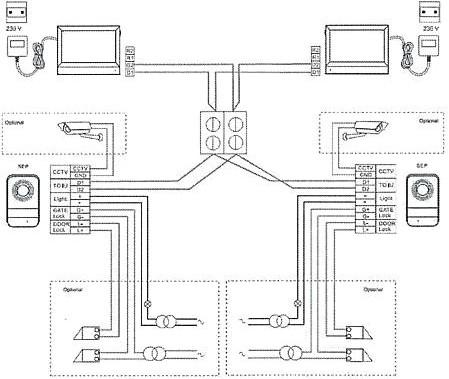

The door station includes nameplates, white LED lighting with a dusk sensor, and two call buttons. Connection terminals are available for the bus line, external camera, door opener (18V/4A), and door control (24V/1A). Power is supplied via the bus line from the monitor. The indoor station is white (dimensions: 165x160x30 mm) and features a 4.3" color monitor, hands-free function, microphone, speaker, voice transmission, door opener, intercom button, and a door control button. Additionally, there is a camera switch for use with up to four cameras, adjustable ringer volume with an off control light, monitor brightness and color settings, as well as a plug-in power supply (230/30V-1A) for the indoor station, along with connection cables for external power supply. The system can be expanded to up to three indoor stations per dwelling unit in parallel operation, with an additional door station and an external camera per door station.

Technical Data

EAN: 3414970566379
Product Group: Intercom Systems and Accessories
Manufacturer: Legrand
Delivery Item Number: 369110
Design: 1/2 Call Buttons
Contents: 1 White Monitor
Voltage: 230V
Material: Metal.
