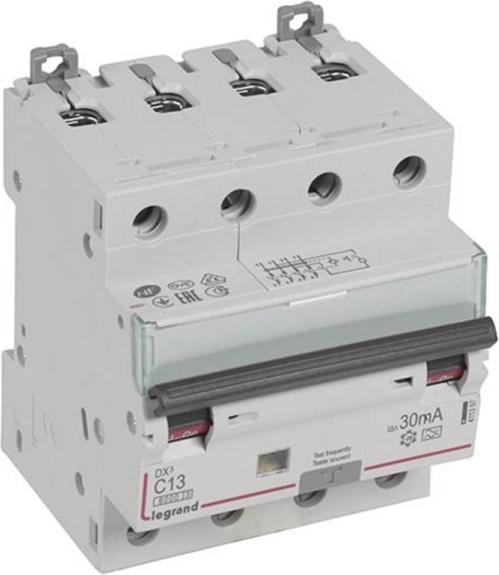

Legrand 411357 RCD circuit breaker/line circuit breaker 13 A 400 V/AC

The Legrand FI circuit breaker/overcurrent protection switch 411357 is a highly advanced device designed to protect electrical installations. With a rated current of 13 A and a rated voltage of 400 V AC, this 4-pole switch provides a reliable solution for protection against fault currents. It meets the requirements of the standards EN 61009-1 and VDE 0664-20 and is suitable for both alternating and pulsating direct fault currents. The switch operates without delay and features a C-characteristic designed for applications with high inrush currents. With a rated breaking capacity of 6 kA and an impulse withstand strength of up to 250 A, it ensures high safety and reliability. The clear trip indication and the option for mounting on a DIN rail make installation and monitoring easy and user-friendly.

• Clear switch position indication in red/green on the switch lever
• Mounting on DIN rail EN 60715 with snap-in quick fastenings
• Trip indication for fault current and test button activation
• Plug-in protection for safe insertion of the conductor into the elevator terminal
• Possibility to attach auxiliary devices.
