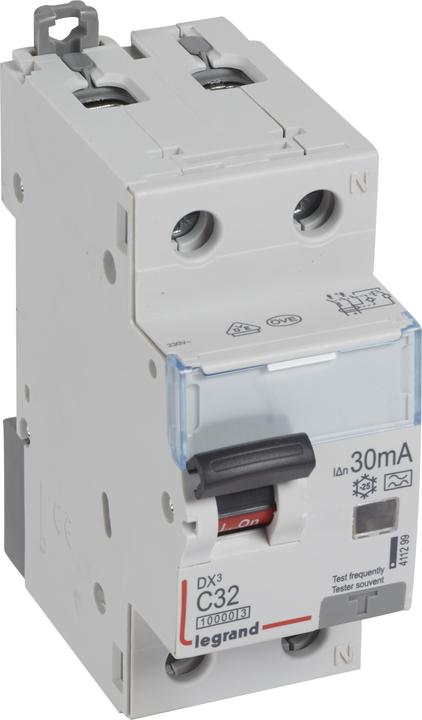

Legrand 411299 RCD circuit breaker/line circuit breaker 32 A 230 V/AC

Legrand FI/LS switch 411299
Manufacturer: Legrand
Designation: FI/LS switch C
Type: 411299
Number of poles (total): 2
Number of fused poles: 1
Rated voltage: 230 V
Rated current: 32 A
Rated residual current: 0.03 A
Residual current type: A
Energy limitation class: 3
Rated breaking capacity according to EN 61009: 10 kA
Rated breaking capacity according to IEC 60947-2: 10 kA
Rated breaking capacity Icn according to EN 61009-1: 10 kA
Surge current resistance: 0.25 kA
Voltage type: AC
Frequency: 50 Hz
Tripping characteristic: C
Switching neutral: Yes
With interlocking device: Yes
Degree of pollution: 2
Width in pitch units: 4
Installation depth: 44 mm
Flush mounting: Yes
False tripping protection: No
Protection class (IP): IP20
Connectable conductor cross-section solid: 0.75 - 16 mm²
Connectable conductor cross-section stranded: 0.75 - 10 mm²

Legrand RCCB 411299: more details
Legrand RCCB DX3, 1-pole with connecting neutral, type A, for AC and pulsating DC residual currents according to EN 61009-1, VDE 0664-20, instantaneous, rated current In 3 A, rated residual current Idn 30 mA. C-characteristic, rated voltage Un 230 VAC, rated frequency 50 Hz, rated breaking capacity Icn 10 kA, surge current resistant up to 250 A, energy limitation class 3, tripping indication: yellow = fault current or test button tripping, colourless = short-circuit or manual tripping. Mounting on top-hat rail EN 60715 by means of latching quick-release fasteners, clear information on the front of each device, clear switch position indication red/green on the switch lever (lockable), with labelling window, with under-plug protection for safe insertion of the conductor into lift terminal, mounting of auxiliary devices possible.
