Lancom Systems YS-7154CF-B2F from 10.2024

25G Stackable Fiber Aggregation Switch for Campus Networks

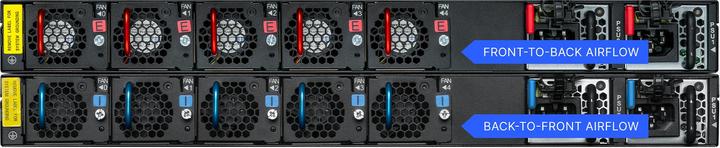

In data-intensive, distributed campus networks, the LANCOM YS-7154CF ensures the necessary performance and high availability of network resources. With 48x 25G SFP28 and 6x 100G QSFP28 ports, the switch offers maximum connection flexibility in mixed 1G-100G environments, achieving a total switch capacity of 3.6 TBit/s. Depending on the size of the installation, the LANCOM YS-7154CF can be integrated as an aggregation switch (distribution base) between core and access switches (three-tier design) or as a core switch or "collapsed backbone" at the top level to the WAN (two-tier design) for building hierarchical switch infrastructures. Reliable, high-performance operation even in bandwidth-intensive networks is ensured through Virtual Port Channel (VPC) or stacking. Additional redundancy is provided by two redundant power supplies, five hot-swappable fan modules, and a selectable cooling concept. Central network management with real-time monitoring of device status is automated and location-independent via LANCOM Management Cloud or through web GUI and CLI according to industry standards.
