Kern Set of scales kit for CE HSA, CE HSAIO, CE HSE, CE HSN, CE HSP, C...

Sauter scale kits can be used to build customized weighing solutions, such as individual scale construction in industry, vehicle construction, and agriculture. This allows for a wide range of requirements in terms of dimensions, materials, and combinable peripheral devices to be realized. They are particularly suitable for the construction of platform scales, hopper scales, silo scales, in-ground scales, and other weighing equipment.

Area of application: Mass and compression force measurements under harsh environmental conditions.

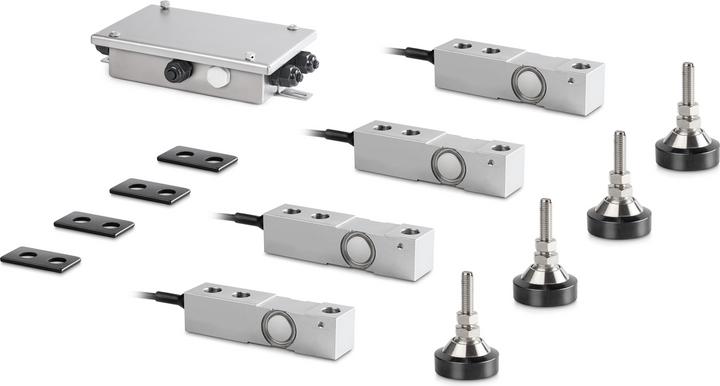

Details of load cells (4 × Sauter CT 500-3Q1):

• Accuracy according to OIML R60 C3
• CE and RoHS compliant
• Dust and splash water protection IP68/IP69K
• Alloy steel
• 6-wire connection
• Nominal characteristic value: 2 mV/V

Junction box Sauter CJ X467:

• Robust stainless steel housing with IP67 dust and splash water protection

Tip: Use the Sauter CW R in combination with one of our evaluation units.
