Kentix DoorLock-WA3-IP Netzwerk-Leser für Auf-Unterputz Montage (MIFARE DESFire)

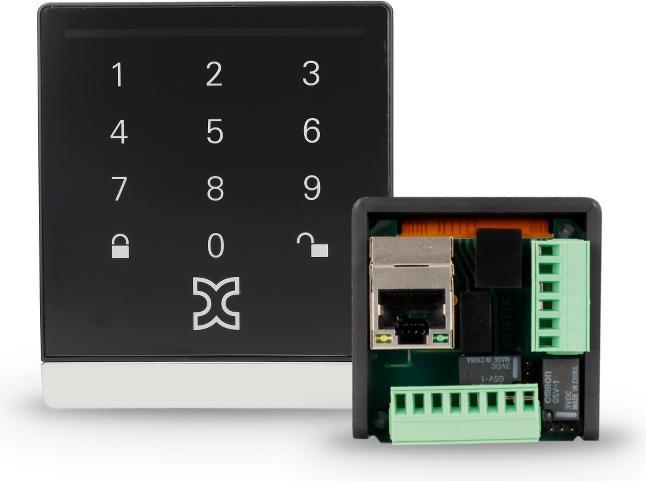

Online access control with IP video integration. The IP wall reader allows for contactless door unlocking using an RFID medium or alternatively via a PIN entry. Two-factor authentication is also possible. The starter set consists of an IP wall reader, a network relay module, and three RFID tokens. This set can be combined with an additional expansion reader (only IP wall reader without network relay module) to integrate another door into the system. In total, an unlimited number of IP wall readers with network relay modules can be interconnected, allowing for any number of doors to be integrated into the system. However, an IP wall reader with a network relay module can only integrate one additional expansion reader; after that, another set including a network relay module is needed.

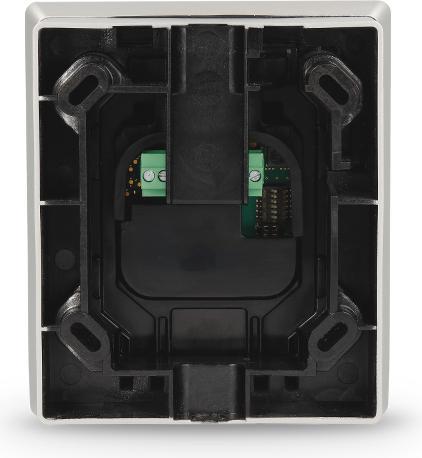

The network relay module serves as the central unit with a network connection. It is mounted on the wall and powered via PoE. Management is done centrally through the integrated web server; no additional software is required. The network relay module communicates with the IP wall reader via a BUS connection. It can be easily installed in the switch box or with a surface-mounted housing (optional) in the door area. Conveniently, the integrated PoE splitter allows the door lock or door opener to be powered directly from the reader module with 24VDC. Therefore, no additional cables for power supply are needed. The expansion reader is also powered directly through the network relay module.

If multiple doors or additional rooms need to be integrated, the network relay modules can be connected in a master-slave mode to form a system with centralized management.
