Kathrein ESU 36 Output

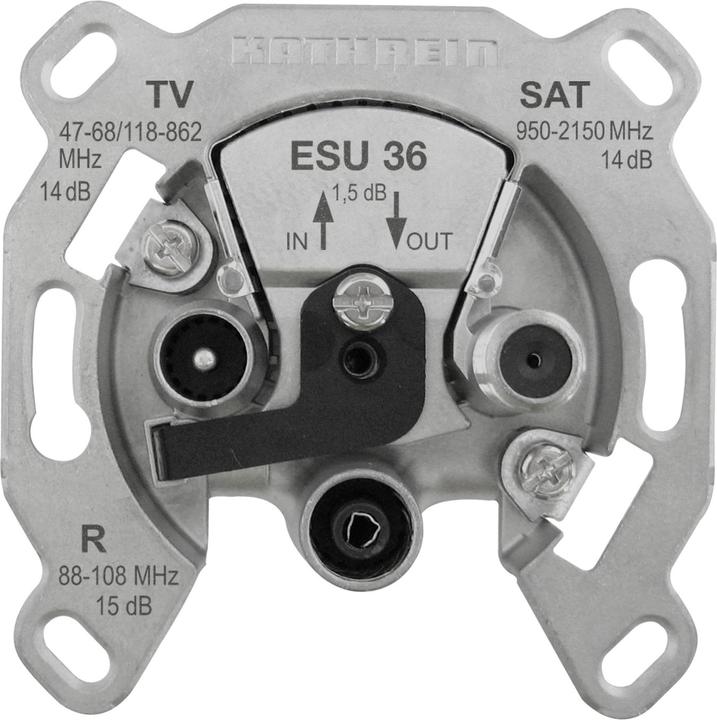

The Kathrein ESU 36 is a high-quality output socket specifically designed for use in single-cable systems. It meets the standards EN 50494 and EN 50607, providing a reliable solution for through-connect systems. With three outputs, it allows for the connection of TV and radio devices as well as satellite receivers. The socket supports DC pass-through via the SAT connection to the trunk line, enabling a maximum voltage of 24 V and a current of 400 mA. The electronic fuse and decoupling diodes offer additional overload protection, while the sturdy die-cast housing ensures durability. Installation is straightforward, as the socket can be mounted using either screw or claw fittings and is compatible with most installation programs.

• Three outputs for TV, radio, and satellite receivers
• DC pass-through via SAT connection (max. 24 V/400 mA)
• Overload protection through electronic fuse and decoupling diodes
• Sturdy die-cast housing for high durability
• Compatible with most installation programs.
