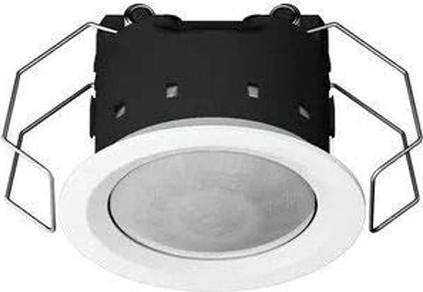

JUNG KNX presence detector Mini Standard alpine white 3361 M WW

With integrated bus coupler. ETS product family Physical Sensors. Product type Motion Detector. Intended use: Demand-based control of lighting, room thermostats, and other electrical consumers indoors. Clamp mounting in suspended ceilings. Ceiling mounting on solid ceilings in device box according to DIN 49073 with flush-mounted set. Surface mounting on solid ceilings with surface-mounted set.

Product features: Integrated bus coupler, 3 PIR sensors, detection field 360°, integrated brightness sensor. Used as a presence detector, motion detector, or for reporting operation. Output functions: Switching, stairwell function, switching with forced position, value transmitter, light scene secondary station, operating mode preset for room temperature controllers. Extension of the detection area by operating multiple devices as main and secondary stations. Adjuster for manual sensitivity correction. Status LED: Blinks when motion is detected; depending on programming, in normal operation or only during walk test operation.

Presence detector function: Detection of the smallest movements, e.g., at a workplace to recognize the presence of persons. Turning on: Motion detection and brightness threshold not met. Turning off: No movement in the detection field and expiration of the after-run time, or brightness threshold exceeded.

Motion detector function: Detection of movements for traffic route security in buildings. After activation and turning on, motion detection operates independently of brightness.

Reporting operation: Brightness-independent detection of movements in the detection field. Turning on: After detecting a set number of movements within the configured monitoring period. Turning off: No movement in the detection field and expiration of the after-run time.
