Jumo 603070/0001-6-016-00 Temperature controller with change-over contact, -1 603070000160160

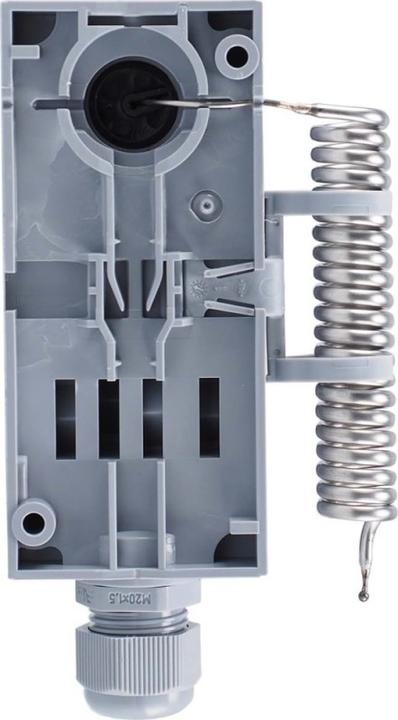

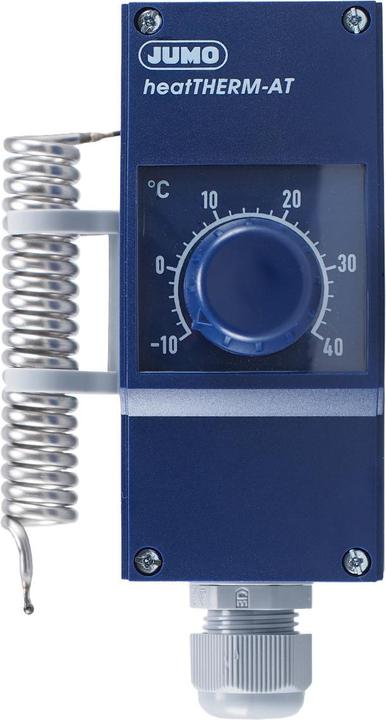

The single-pole mechanical surface-mounted thermostat is very robust due to its impact-resistant housing made of high-quality plastic and can be used even under harsh conditions. The measuring system operates based on the principle of liquid expansion and can be used without issues up to a maximum allowable sensor temperature of 50 °C. The coiled sensor made of high-quality stainless steel has a diameter of 17 mm and is mounted on the side of the housing. If necessary, the sensor can also be attached to the opposite side. The maximum allowable ambient temperature at the housing with protection class IP54 is 50 °C. The housing is mounted directly on the base for wall installation. With the help of a setpoint controller, the desired cutoff temperature can be easily set on a scale. The temperature controller features a high switching point accuracy of -3 in the upper third of the scale. The built-in temperature compensation minimizes the influence of ambient temperature on the switching head. A significant advantage is that no additional auxiliary power is required for temperature measurement. The electrical connection is made via push-in terminals, which significantly reduces installation time compared to conventional screw connections. The maximum allowable switching power is AC 230 volts 16 A. The thermostat has a switching differential (hysteresis) of approximately 1.5 K and automatically switches back to its original state after falling below the cutoff temperature by this value. The temperature controller is very versatile and can be used for both room temperature monitoring and building automation. It is also suitable for heating, air conditioning, and ventilation technology. Additional application areas include temperature monitoring in laboratory and climate cabinets. The device is approved according to DIN EN 14597 and has EAC certification.
