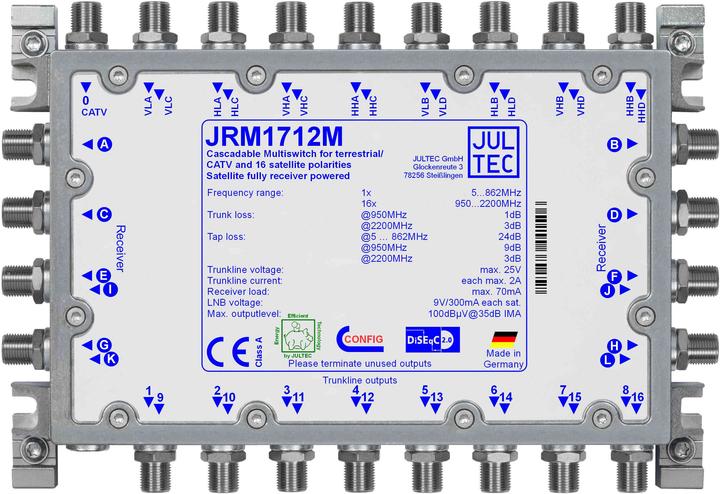

Jultec Multischalter JRM1712M 17 auf 12 Kaskade

The JRM1712M and JRM1712T devices are multi-switches for completely receiver-powered distribution networks for four satellite systems in an ultra-compact design. Thanks to a new energy-efficient power management concept, a single receiver can supply power to both the multi-switch and the connected Quattro LNBs. The receiver powers the LNB from which it receives programs, meaning no power supply is required at the multi-switch, and there are no standby losses, resulting in absolutely no power consumption when all receiving devices are turned off.

At each of the 12 branches, a conventional satellite receiver (DVB-S/S2) with DiSEqC control can be operated, as well as televisions with integrated satellite reception.

All device variants are also suitable for the distribution of terrestrial signals (FM, DAB+, DVB-T/T2; use a 3-way socket like the JAD300TRS), as well as for the distribution of cable television signals including internet access/telephony (DVB-C/C2 including DOCSIS 3; use a 4-way socket like the JAD400TRSM). This distribution also works without a satellite receiver!

The JRM1712M has trunk line/cascade outputs for satellite IF, while the JRM1712T is terminated (as a single or terminating device). The power requirement per receiver does not increase when cascading.

The JRM1712T variant is no longer being produced. Please use the JRM1712M and DC-decoupled terminating resistors on the trunk line outputs.
