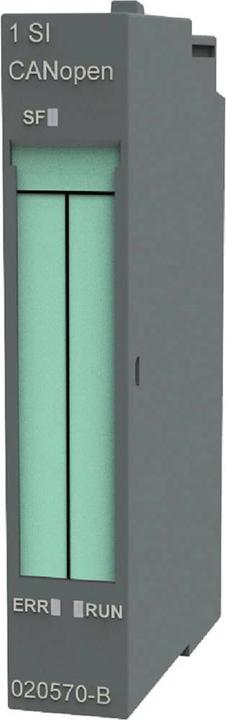

Ixxat 1SICANopen Plug-In CANopen Master/Slave Module for SIMATIC ET200S

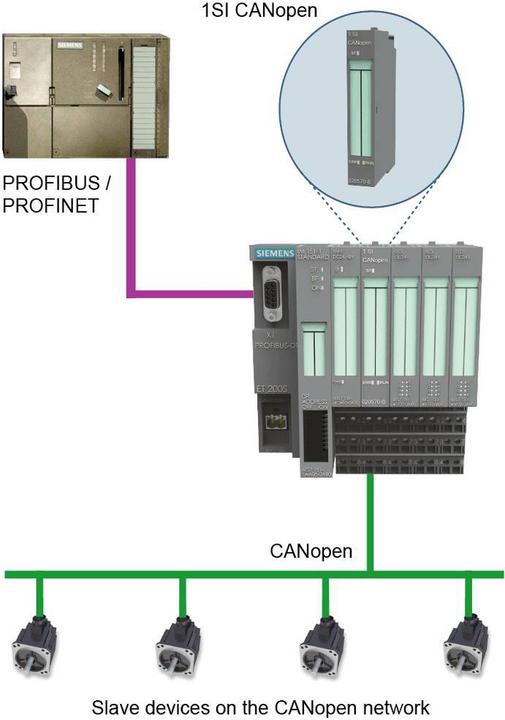

1 SI CANopen Plug-In CANopen Master/Slave module for SIMATIC ET200S decentralized peripheral systems. The 1 SI CANopen module enables the connection of CANopen devices to decentralized peripheral systems of the SIMATIC ET200S. By using the 1 SI CANopen module in the ET200S system, CAN/CANopen networks can be seamlessly controlled via PROFIBUS or PROFINET. The 1 SI CANopen module facilitates the easy integration of SIMATIC devices in areas where CANopen and other CAN-based protocols are used. PROFIBUS or PROFINET controllers, such as those from the S7 series, can thus directly interact with CAN or CANopen-based devices (gateway). The 1 SI CANopen module is supported by all interface and CPU modules of the SIMATIC ET200S, except for the Basic and Compact versions.

Configuration CANopen configuration and TIA Portal integration. The simple integration into the SIMATIC world is an important requirement when expanding the SIMATIC automation system with fieldbus devices that are not based on PROFIBUS or PROFINET. To meet this requirement, HMS enables the seamless integration of the 1 SI CANopen module into SIMATIC STEP 7 or TIA Portal. The configuration of the connected CANopen network can be intuitively performed with the optional Anybus Configuration Manager - CANopen. Once the configuration is complete, the CANopen network configuration can be loaded and saved into the PROFIBUS or PROFINET PLC or the ET200S system CPU. When replacing a 1 SI CANopen module, the previously saved configuration can be loaded from the PLC into the new module. This significantly reduces downtime in high-availability applications. The 1 SI CANopen module can also be replaced while in operation. CAN 2.0A mode transparent CAN 2.
