Itelite SRA50023 - 5 GHz 23 dBi Panel Antenna+ Enclosure - Ethernet - Power over Ethernet

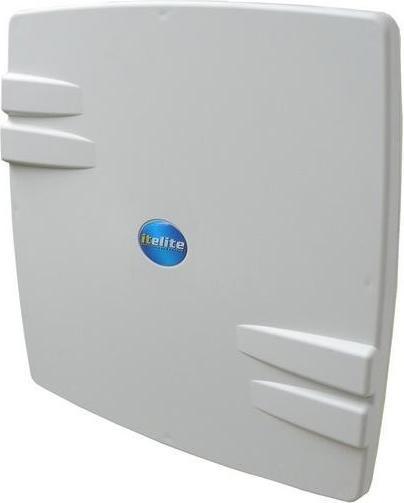

IT Elite SRA50023 - 5 GHz, 23 dBi panel antenna with housing

The antenna with waterproof housing operates in the 5 GHz band with 23 dBi gain and can be mounted for horizontal or vertical polarization.

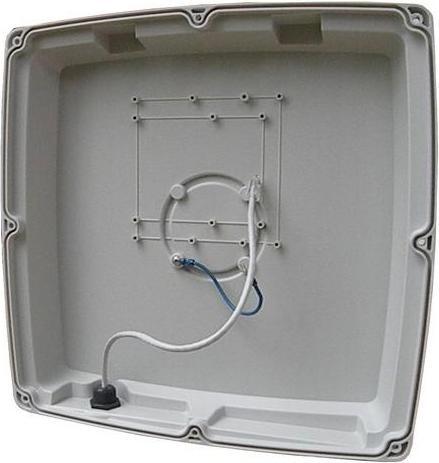

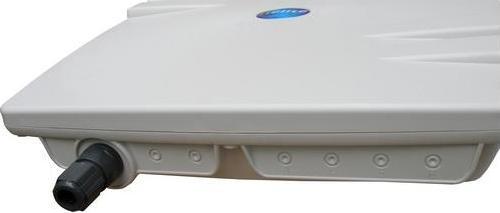

The outdoor housing offers sufficient space for router boards or other electronic accessories. The housing is equipped with a special RJ-45 waterproof Ethernet port for easy connection to the network and Power over Ethernet (PoE).

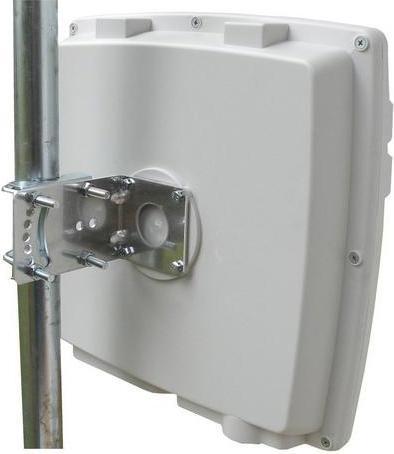

Perfectly suited for use in difficult weather conditions, the corrosion resistance of the materials allows the antenna to be operated in saltwater environments. The high quality of the mast mounting guarantees simple and smooth tilt adjustment as well as stable operation.

The antenna can be used as a client station and also as a small base station. The housing has suitable mounting holes for MikroTik Router boards of the 411, 433, and 600 series.

Key features:

• 23 dBi gain
• Special weatherproof outdoor housing
• Compatible with MikroTik Router boards
• High-quality construction
• Horizontal or vertical polarization
• Easy mounting and tilt adjustment
• Stable mounting

Designed for all weather conditions.

Applications:

• 5 GHz band wireless LAN
• IEEE 802.11a WLAN systems
• RLAN
• FWA
• WiMAX

Electrical properties:

• Frequency: 5.1 - 5.9 GHz
• Gain: 23 dBi
• Polarization: Horizontal or vertical
• Horizontal aperture angle: 10°
• Vertical aperture angle: 10°
• VSWR:
• Resistance: 50 Ohm
• Front to back ratio: >34 dB

Housing properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: Grey
• Min. Temperature: -40°C / -40°F
• Max. Temperature: 80°C / 176°F

Mechanical properties:

• Compatible with: RB411, RB433, and RB600 series
• Antenna connection: SMA socket, U.FL or MMCX pigtail optional
• Housing connection: Waterproof Ethernet connector
• External dimensions: 385 x 385 x 80 mm
• Weight: 2.4 kg / 5.3 lbs.
