Product details
ANTENNA KEY FEATURES
- 10 dBi Sectorial Gain
- Special weatherproof housing for outdoor use
- Highest protection class IP 66
- High-quality construction
- Minimised sidelobe level
- Vertical polarisation

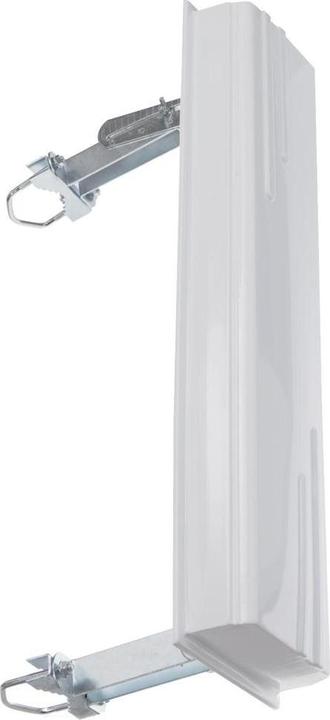

- Heavy-duty mounting elements
- Easy height and tilt adjustment - Designed for all-weather operation Easy height and tilt adjustment
- Designed for all-weather operation
ANTENNA APPLICATIONS
- 900 MHz ISM band
- GSM
- Non Line of Sight (NLOS)
- Cellular
- Point-to-multipoint applications
ANTENNA SPECIFICATION
ELECTRICAL FEATURES
- Frequency range: 0.9 GHz
- Gain: 10 dBi
- Polarisation: Linear. V
- Beam angle horizontal: l90° @ -3dB
- Beam angle vertical: 38° @ -3dB
- VSWR:undlt;2
- Impedance: 50 Ohm
- Front to back ratio: undgt; 21 dB
MECHANICAL FEATURES

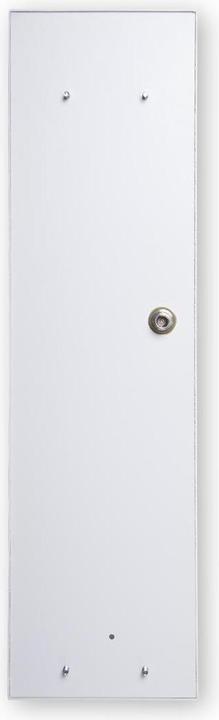

- Connector: N female
- Wind load: 150 km/h
- Mounting pole Φ: 5.5cm / 2.16"
- RoHS compliant: Yes
HOUSINGFEATURES
- Material: UV-protected PVC
- Colour: White
- External dimensions: 581x158x75.5mm / 22.87x6.22x2.95"
- Weight: 1.55kg kg / 3.42 lbs
- Temperature range: -40 +80°C / -40 +176°F
- Lightning protection: DC earth.
