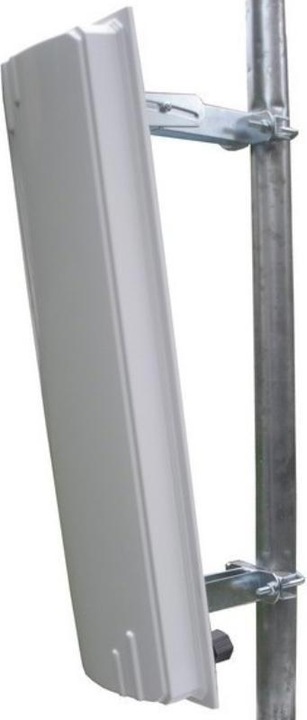

IT ELITE PRO-SEC24015V - 2.4 GHz, 15 dBi Sector Antenna Box

The professional sector antenna operates in the 2.4 GHz band with a gain of 15 dBi and vertical polarization. The waterproof outdoor housing provides ample space for RouterBOARDs or other electronic accessories.

The housing is equipped with a special RJ-45 waterproof Ethernet connector for easy connection to the network and PoE.

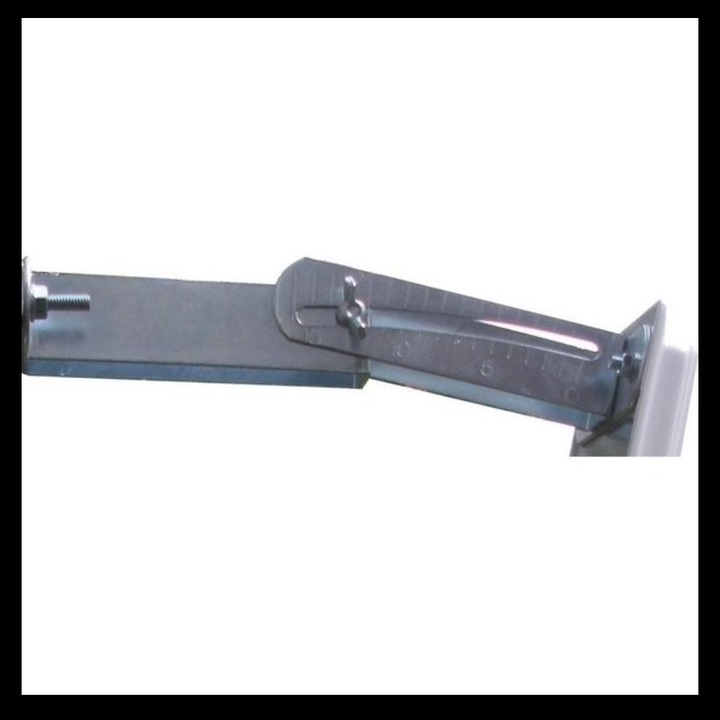

Perfectly suited for use in harsh weather conditions, as the corrosion resistance of the materials allows the antenna to be operated even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

This product is excellent for point-to-point and multipoint connections. The housing features appropriate mounting holes for MikroTik RouterBOARD models 411 and 433 series.

Main Features:

• 15 dBi sector gain
• special weatherproof outdoor housing
• highest protection class IP 66
• high-quality construction
• low side lobes
• vertical polarization
• robust mounting elements
• easy alignment
• designed for operation in any weather

Applications:

• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g WLAN systems
• Point to Multipoint applications

Electrical Properties:

• Frequency range: 2.4 - 2.5 GHz
• Gain: 15 dBi
• Polarization: vertical
• Horizontal opening angle: 90° (-3 dB), 120° (-6 dB)
• Vertical opening angle: 12°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 35 dB
• Lightning protection: DC ground

Mechanical Properties:

• Compatible with: RB411 and RB433 series
• Antenna connector: SMA socket, U.FL or MMCX pigtail optional
• Housing connection: waterproof Ethernet connector
• External dimensions: 580 x 150 x 60 mm
• Weight: 2.1 kg

Housing Properties:

• Technology: Microstrip
• Material: UV resistant
• Color: white
• Protection class (EN 60529): IP...
