Itelite PRA35019 - 3.5 GHz 19 dBi Panel Antenna+ Enclosure - Ethernet - Power over Etherne

IT ELITE PRA35019 - 3.5 GHz, 19 dBi Panel Antenna + Housing

The antenna with a waterproof housing operates in the 3.5 GHz band with a gain of 19 dBi and can be mounted for horizontal or vertical polarization.

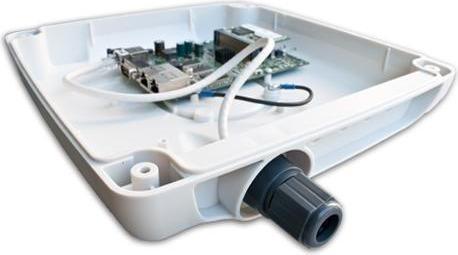

The housing provides ample space for RouterBOARDs or other electronic accessories. It comes with a special waterproof RJ-45 Ethernet connector for easy connection to the internet network and PoE.

Perfectly suited for use in extreme climatic conditions. The material is corrosion-resistant and can also be used in areas with high salt content. The high quality of the mast mounting ensures easy and smooth tilt adjustment as well as shock-resistant operation.

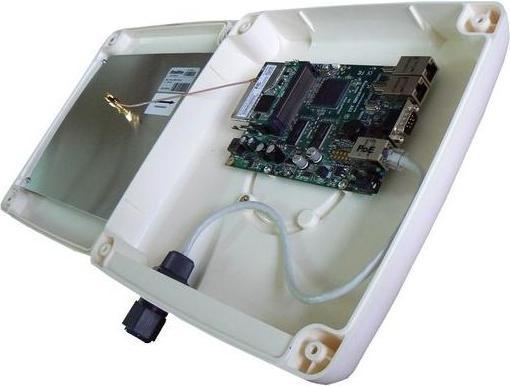

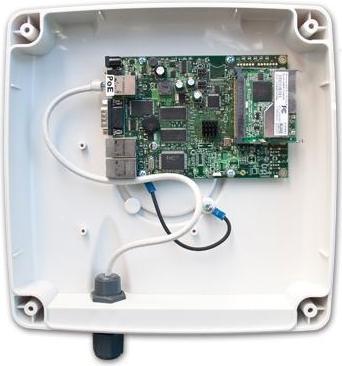

The antenna can be used as Customer Premise Equipment and also as a small base station. The housing has suitable mounting holes for MikroTik RouterBOARDs of the 411 and 433 series.

Features:

• 19 dBi sector gain
• Vertical or horizontal polarization
• Special weatherproof housing for outdoor use
• Suitable for MikroTik RouterBOARDs
• High-quality construction
• Robust mounting elements
• Easy alignment and installation
• Designed for use in any weather

Applications:

• 3.5 GHz band Wireless LAN
• WiMAX

Electrical Properties:

• Frequency: 3.4 - 3.7 GHz
• Gain: 19 dBi
• Polarization: Vertical or horizontal
• Horizontal beamwidth: 20°
• Vertical beamwidth: 20°
• VSWR:
• Impedance: 50 Ohm
• Front to Back ratio: > 35 dB
• Lightning protection: DC grounding

Housing Properties:

• Technology: Microstrip
• Material: UV resistant
• Color: Gray
• Minimum temperature: -40°C
• Maximum temperature: 80°C

Mechanical Properties:

• Compatible with: RB411 and RB433 series
• Input: SMA connector, U.FL or MMCX pigtail optional
• Housing connection: Waterproof Ethernet connector
• External dimensions: 270 x 270 x 75 mm
• Weight: 1.2 kg.
