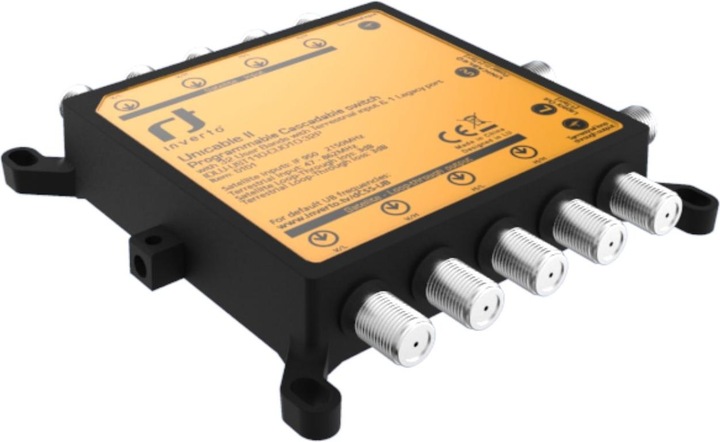

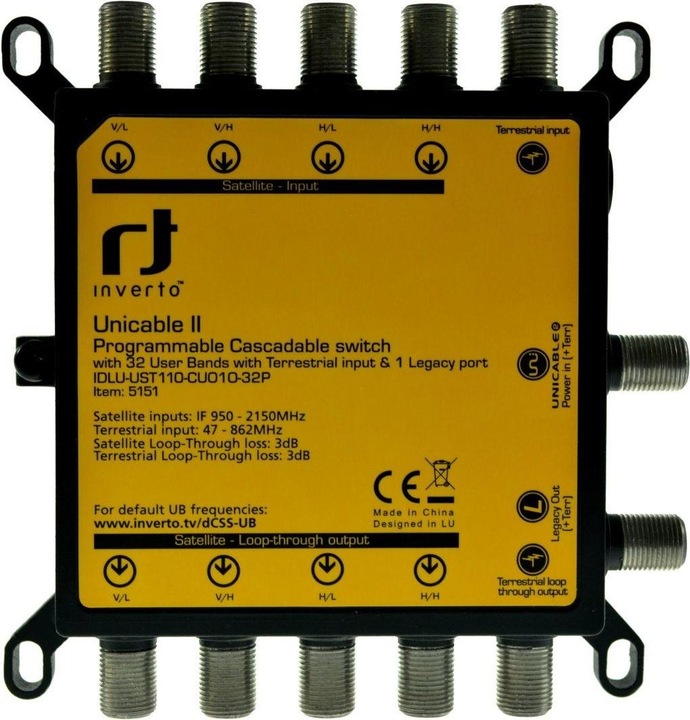

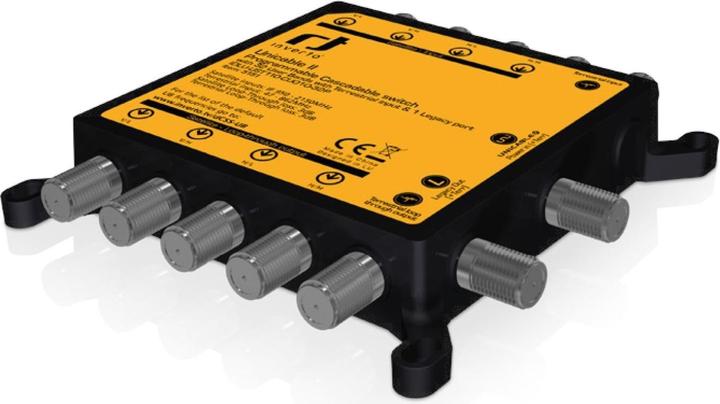

inverto Unicable II multi-switch 32 participants 1 output 1 input

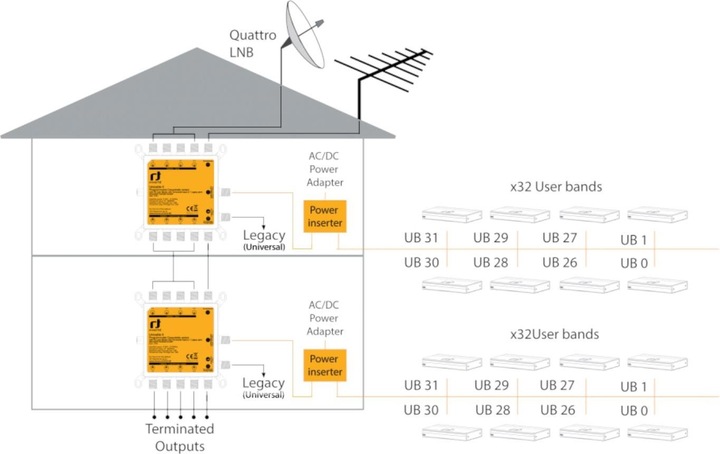

The IDLU-UST110-CUO1O-32P is a Unicable2 multiswitch with the smallest possible form factor, allowing installations with up to 32 set-top boxes over a single cable. The digital channel stacking technology utilizes fast broadband analog-to-digital converters and employs digital signal processing to select and bundle the desired transponder channels. Compared to analog channel stacking, which relies on analog frequency conversion to fixed predetermined frequencies, digital channel stacking does not require surface wave filters, offers full flexibility in channel selection, and supports many more set-top boxes over a single coaxial cable, all while significantly reducing costs and power consumption for the end user. Controlled by the connected receivers via the EN50494 or EN50607 protocol, the multiswitch now selects the desired transponder, converts the frequency to the corresponding user band, and combines this signal through the Unicable output thanks to the digital-to-analog converter (also known as "dynamic" mode). The multiswitch firmware can be configured to provide a fixed predetermined transponder-to-IF frequency assignment (also known as "static" mode), allowing it to output up to 32 transponders (depending on the bandwidth of the desired transponders) through a Unicable output. This enables an unlimited number of receivers to be connected to the LNB, making satellite distribution for residential installations significantly cheaper and easier than ever before. The operating mode (dynamic or static), signal level, channel bandwidth, number of user bands, intermediate frequencies, and an antenna alignment mode can be configured and updated on-site using a programming device.
