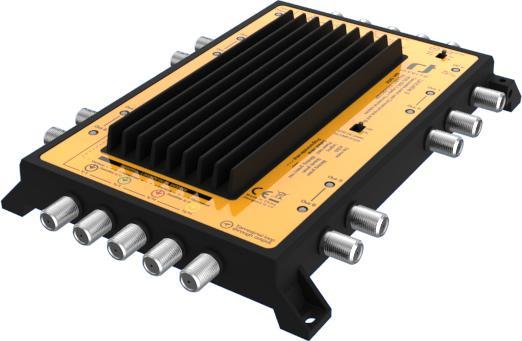

inverto IDLU-UST110-CUO8O-32PP Unicable II / Terrestrial

Unicable II™ - Programmable LNB and Multiswitch Solutions (ODU)

Inverto has been a leader in single cable solutions since 2005 and a key provider of a range of ODU products for the major satellite operators worldwide. Unicable II™ is the second generation of Inverto's single cable solutions, based on Digital Channel Stacking Technology (dCSS), and supports up to 32 user bands, utilizing the latest full-band capture technology.

Unlike other providers that rely entirely on IC manufacturers to supply suitable software, Inverto's R&D team has full control over the software and hardware of its Unicable II LNB and multiswitch products. This allows Inverto to develop and add specialized hardware and software features for its products, while customers benefit from the ability to quickly customize the product to meet their individual requirements.

The LNB and multiswitch solutions are based on BRCM, MXL, and ENTR dCSS ICs, supporting both DYNAMIC mode (EN50607) and STATIC mode (a fixed assignment of transponder frequencies implemented on IF frequencies). The operating characteristics (e.g., dynamic/static mode, channel bandwidth/channel frequency, output level, etc.) are freely programmable and can be configured and updated using the Inverto programming device and the PC software or mobile application. The products can be powered either through a connected receiving device or via a power inserter with an AC/DC power supply if the receiving device does not provide sufficient voltage.
