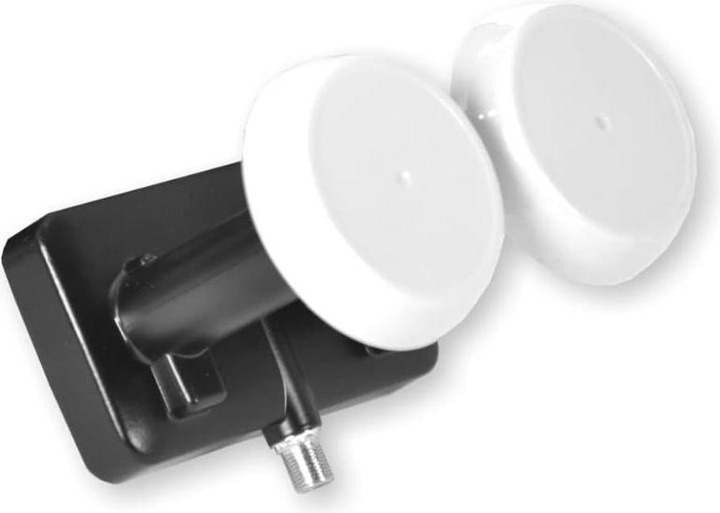

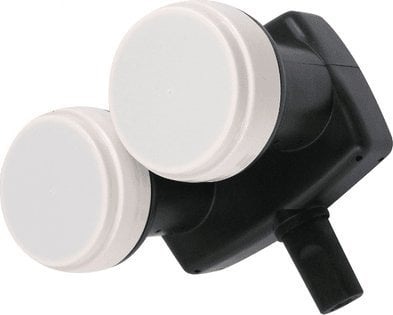

inverto IDLM-SIM410

Single monoblock with a diameter of 23 mm for 80 cm satellite antennas with a 40 mm adapter. Low phase noise, DVB-S2 (HDTV) compliant. Low noise. Low power consumption. High cross-polarization isolation. High frequency stability. Designed for the European DTH markets. This monoblock LNB enables dual satellite reception from the orbital positions 13°E and 19.2°E using a single 80 cm offset satellite antenna with an F/D ratio of 0.6 and its distribution to a satellite receiver. The LNB receives satellite broadcasts with horizontal and vertical polarization in the frequency range of 10.7 GHz to 12.75 GHz. It offers a universal output with an IF frequency range of 950 MHz to 2150 MHz. The output from the F-type port also carries power supply and control signals. DiSEqC 1.0 commands allow for the selection of the orbital satellite position. Unless a DiSEqC command is received, the default feed is position Sat A (i.e., 13°E). Polarization (vertical/horizontal) and band (low band/high band) are selected using 13 V DC/18 V DC and 0/22 kHz control signals. Optimized for UHD. The LNB is optimized for Ultra High Definition (4K/8K) transmissions and offers excellent cross-polarization isolation, phase noise, and noise figure performance. Designed to meet strict specifications and manufactured to the highest quality standards in the industry, this LNB is an ideal solution for satellite reception of Hotbird 13°E and Astra 19.2°E across Europe. The LNB comes with a 40 mm plastic ring adapter to facilitate mounting on a standard 40 mm LNB holder.
