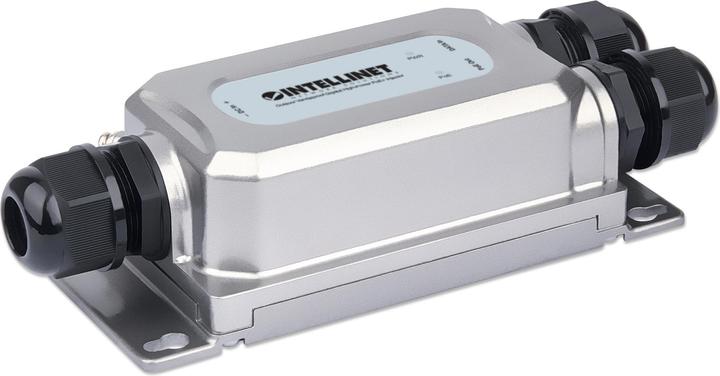

Intellinet Outdoor Gigabit High-Power PoE+ Injector with Vandal Protection

Outdoor Gigabit PoE+ Injector - 30 W with IEEE 802.3at

The Outdoor Gigabit High-Power PoE+ Injector with vandalism protection from Intellinet Network Solutions connects IEEE 802.3af/at compliant access points, IP phones, or network cameras to switches that are not equipped. This ensures power and data connection in a single cable up to 100 m. The 4PPoE injector provides output power of up to 30 watts for many power-hungry PoE+ devices.

Robust Design for Outdoor and Industrial Use

This PoE+ injector is suitable for a wide range of environments. Its weatherproof housing with an IP67 protection rating is dust and waterproof. It also allows operation in extreme ambient temperatures from -40 to 75 °C and with an impact resistance rating of IK10, it protects against vandalism. Additional shock resistance ratings (IEC 60068-2-27), free fall (IEC 60068-2-32), and vibration (IEC 60068-2-6) further enhance its robustness.

Reduced Cabling Costs

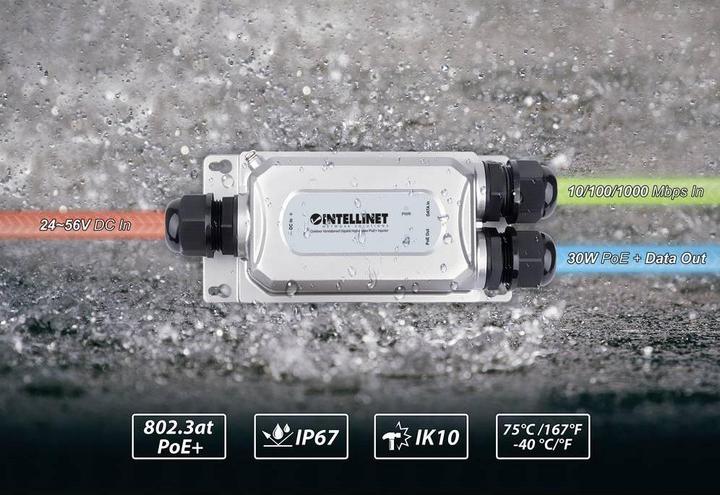

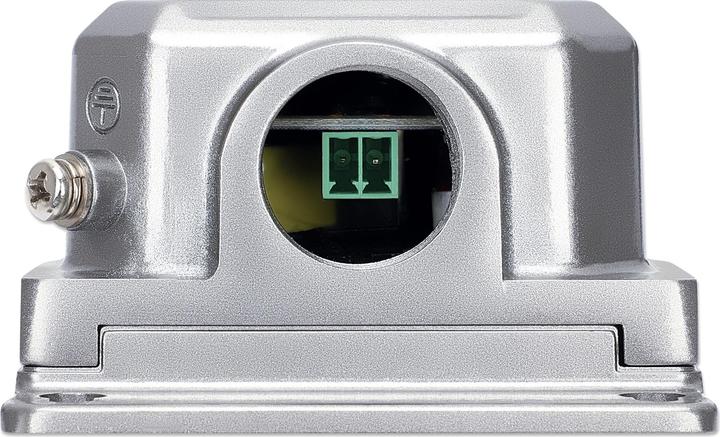

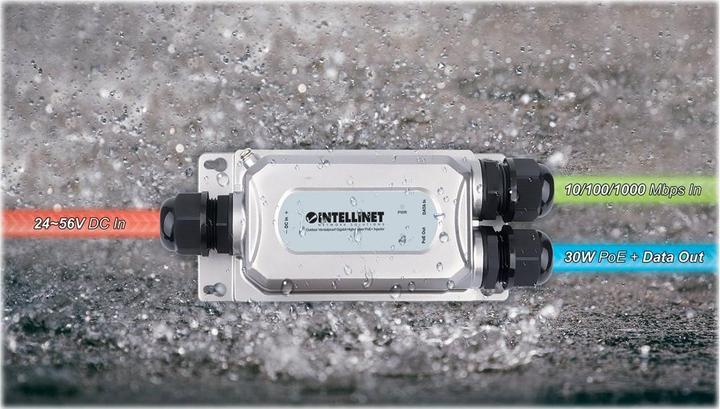

As mentioned earlier: You do not need separate power lines to supply your PD equipment (Powered Devices). Once you connect the injector to a LAN switch and to your power network via the two-pole DC terminal block, you can transmit output power of up to 30 W and speeds of 10/100/1000 Mbit/s over Cat5/6/6a cables up to 100 m.

Safe Protection for Your Expensive Network Equipment

The autosensing technology of this PoE injector provides safe protection against short circuits, overloading, and overvoltage. Additionally, it features port surge protection up to 6 kV as well as ESD protection up to 8 kV (air) and 6 kV (contact).

Optional Wall Mounting

For maximum flexibility in installation both indoors and outdoors, the injector can be mounted on a wall using the four mounting holes on the back. The required mounting materials are included in the delivery.
