The small Nuc is ideally suited as a small office computer in a confined space. The performance is impressive in the office area. The only drawback of the tiny device is the noisy fan.

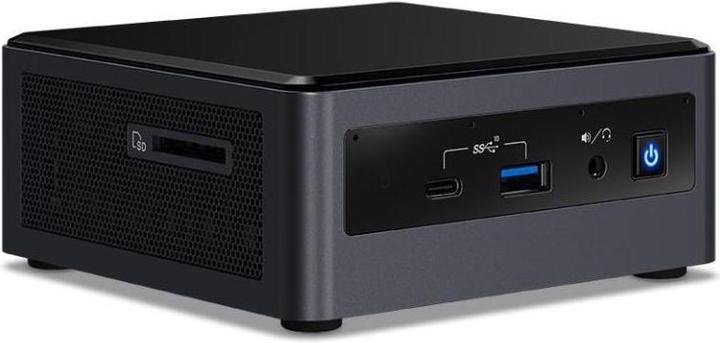

The Intel NUC impresses not only with its range of features but also with its extremely compact design. In this version, the mini-PC is equipped with a 10th generation Intel Core i7 processor. RAM and storage are also pre-installed, allowing you to look forward to a fully functional computer in a miniature format.
Inside the NUC, you will find an Intel Optane Memory module that automatically recognizes and accelerates frequently used data. This non-volatile cache provides intelligent system acceleration. The result is lightning-fast system boot-ups and reduced waiting times in games or professional applications.

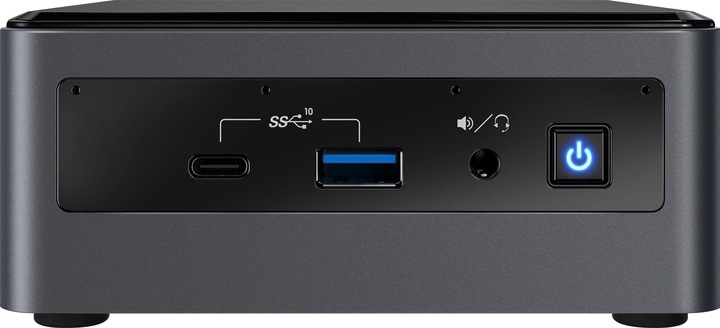

The NUC features five fast USB 3.1 ports, one of which has a charging function, enabling you to quickly and easily charge your tablet or smartphone. With 1000 Mbps LAN and modern AC-standard Wi-Fi, network connectivity is fast and straightforward, whether wired or wireless.
PC type | Mini PC |
Processor family | Core i7 10th Gen |
Operating System Version | Windows 10 Home |
Video connections | HDMI (1x) |
Network connections | RJ45 (1x) |
Item number | 13591080 |
Manufacturer | Intel |
Category | PC |
Manufacturer no. | BXNUC10I7FNHJA2 |
Release date | 17.8.2020 |
External links |
Colour | Black |
Exact colour description | Black |
PC type | Mini PC |
Operating system | Windows |
Operating System Version | Windows 10 Home |
Language | English, French, German, Italian |
Operating system architecture | 64-bit |
Number of processors | 1 x |
Processor family | Core i7 10th Gen |
Processor type | Intel Core i7-10710U |
Clock frequency | 1.10 GHz |
Max. turbo clock rate | 4.70 GHz |
Max. TDP | 15 W |
Number of processor cores | 6 -Core |
Number of threads | 12 |
Cache | 12 MB |
Socket | FCBGA1528 |
Processor cooling type | Air cooled |
Memory | 8 GB |
Memory configuration | 2 x 4GB |
Max. supported memory | 64 GB |
Memory type | DDR4-RAM |
RAM speed | 2666 MHz |
Memory form factor | SO-DIMM |
Number of memory slots | 2 |
Number of free memory slots | 0 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
RAID configuration | 0, 1 |
Disk type | SSD |
Total capacity | 1016 GB |
Form factor | 2.5" |
SSD capacity | 16 GB |
HDD capacity | 1 TB |
Further data carrier type | HDD |
Storage capacity | 1000 GB |
Form factor | UCFF |
Graphics hardware | Integrated graphics |
Graphics card model | Intel UHD Graphics |

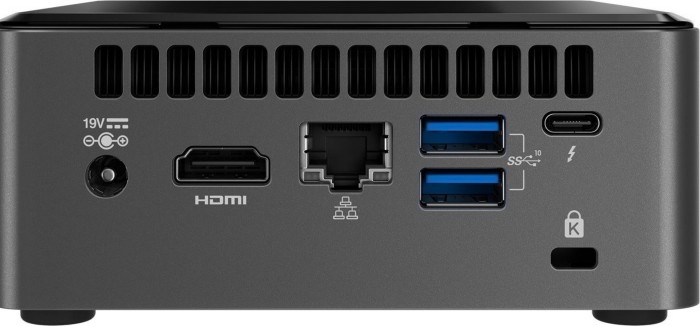

Hardware interface | Ethernet, HDMI IN, RJ45, Thunderbolt 3, USB 3.1, USB-C |
Ethernet controller | Intel I219-V |
Max. port speed | 101001000 Mbit/s |
Wireless transmission | Bluetooth, Wi-Fi |
Bluetooth version | 5.0 |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
"Number of 2.5"" drive slots" | 1 x |
Form factor | Small Form |
USB ports | USB-C |
Video connections | HDMI (1x) |
Network connections | RJ45 (1x) |
Expansion slot | PCI Express x1 (2x), PCI Express x1 (4x), PCI Express x2 (1x), PCI Express x4 (1x) |
Memory card type | SDXC |
Power supply | 120 W |
CO₂-Emission | |
Climate contribution |
Length | 11.70 cm |
Width | 11.20 cm |
Height | 5.10 cm |
Length | 11.80 cm |
Width | 12.80 cm |
Height | 18.40 cm |
Weight | 1.42 kg |
