Insys icom RoofMount Antenna, /3G/2GSMA SMA m Frequency bands 25
4G, 2G, 3GDelivered between Wed, 15.10. and Tue, 4.11.
Supplied by
orderflow.ch CH
free shipping
Product details

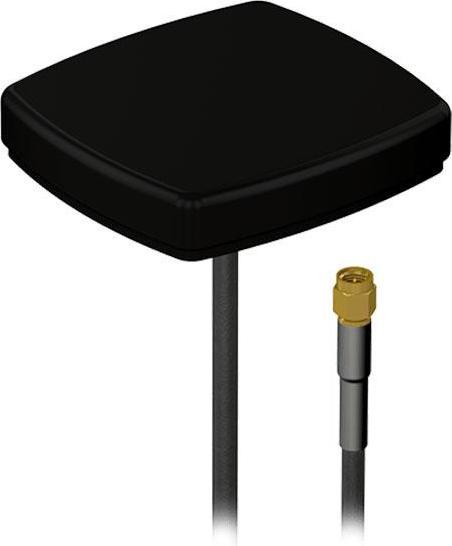

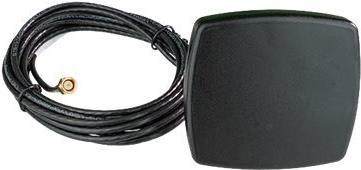

The INSYS icom roof antenna is a high-performance network antenna designed for professional use. It supports frequency bands of 698 - 960 MHz, 1710 - 2170 MHz, and 2500 - 2700 MHz, including US bands, enabling a reliable connection across various mobile networks, including 4G, 3G, and 2G. With a compact design of 80 x 76 mm and a height of 15.7 mm, this antenna is ideal for roof mounting. The screw mount ensures secure attachment, while the 3-meter cable allows for flexible installation. The antenna is rated IP67, which means it is dust-tight and protected against temporary immersion in water, making it excellent for outdoor use.
- Antenna connector: SMA for easy integration
- Antenna gain of 1.8 dB for improved signal strength
- Robust screw mount for secure installation
- IP67 protection class for high weather resistance
- Suitable for outdoor applications in various mobile networks.
Antenna type | Mobile radio antenna |
Antenna connection | SMA |
Cable length | 3 m |
Application range | Outdoor |
Protection type (IP code) | IP67 |
Item number | 16772879 |
Manufacturer | Insys |
Category | Network antenna |
Manufacturer no. | 10022309 |
Release date | 7.10.2021 |
Antenna type | Mobile radio antenna |
antenna reception | 2G, 3G, 4G |
Antenna gain | 1.80 dBi |
Antenna connection | SMA |
Cable length | 3 m |
Application range | Outdoor |
Mounting type | Screws |
Protection type (IP code) | IP67 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.08 m |
Width | 0.08 m |
Height | 0.02 m |
Specifications may include unverified machine translations.
