infomir MAG 540

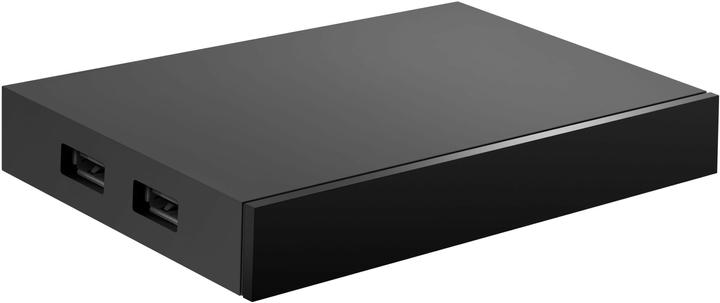

The MAG540 Set-Top Box is equipped with robust hardware and can operate for months without a restart. It features an Amlogic S905Y4 SoC with a Quad-Core ARM Cortex-A35 CPU, Linux OS, and supports 4K video and HEVC technology, allowing users to enjoy high-resolution content without delay, even at lower bitrates. For added convenience, it includes USB ports for a mouse, keyboard, or external storage. The Ethernet connection ensures a stable internet connection and smooth video playback.

Audio and Video Modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio Codecs: MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio Formats: MP3, OGG, WAV, AAC
Video Codecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
Video Containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image Formats: JPEG, PNG, BMP, RAW
Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
Playlist Formats: M3U, M3U8, PLS, CUE

Hardware Features:
Chipset: Amlogic S905Y4-B
Performance: 16,500 DMIPS
CPU: Quad-Core ARM Cortex-A35
RAM: 1 GB DDR3
Storage: 4 GB eMMC
Software and CAS/DRM: OS Linux 4.9
Middleware: Pre-integrated Ministra TV platform. We can integrate the operator's applications into the interface and customize or replace the interface.

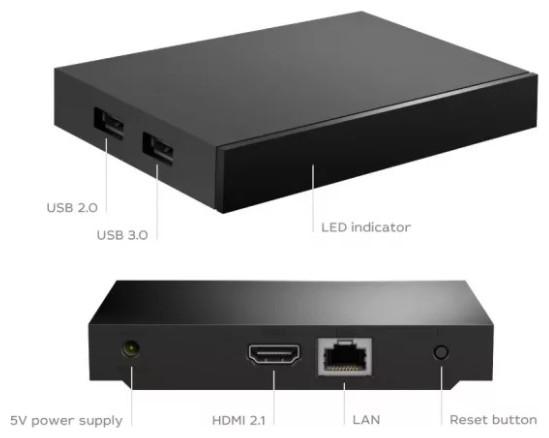

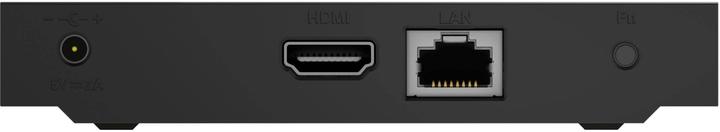

Connections:
Digital Ports: HDMI 2.1
Ethernet: 100 Mbps
USB: 2 × USB 2.0
Power Supply: DC 5 V, 2 A

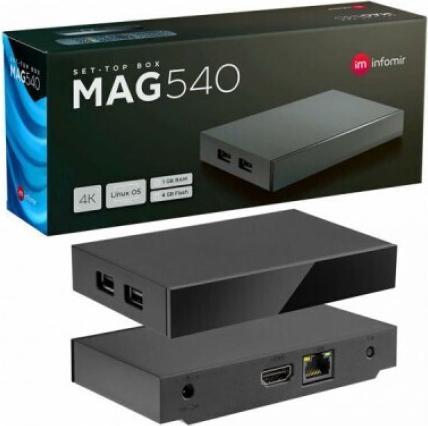

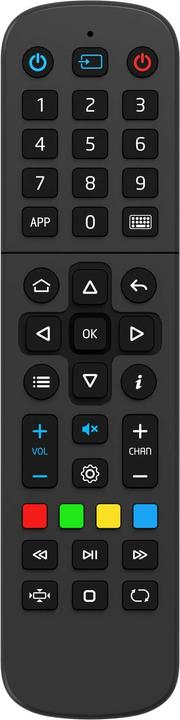

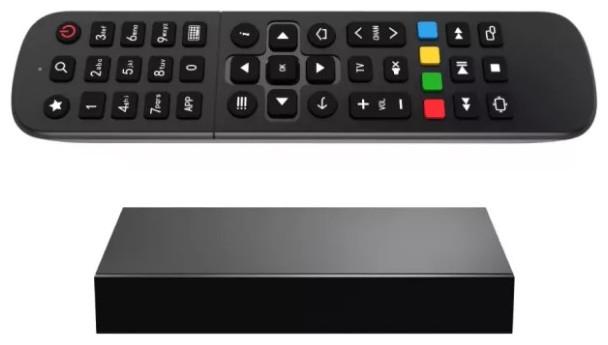

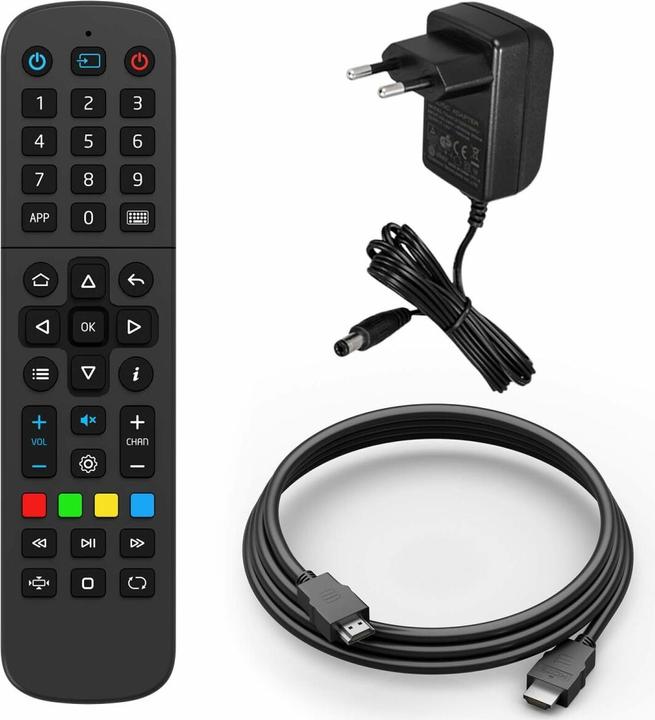

Package Contents: MAG 540, power supply, HDMI cable, remote control, 2x AAA batteries.
