IFM OGS700

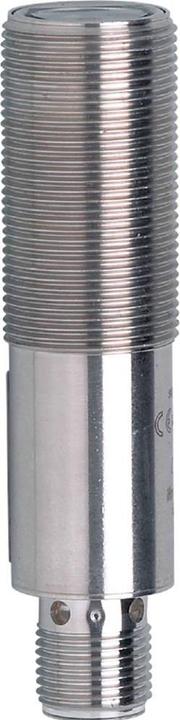

Ifm Electronic Through-beam sensor DC OGS700 Manufacturer :Ifm Electronic Designation :Through-beam sensor DC M18x1 Laser light Type :OGS700 Scope of delivery of the through-beam system :Transmitter Pre-failure signal :no With time function :no Rated switching distance :60000 mm Max. Switching distance :60000 mm With reflector :no Analogue output 0 V ... 10 V :no Analogue output 0 mA ... 20 mA :no Analogue output 4 mA ... 20 mA :no Analogue output -10 V ... +10 V :no With other analogue output :no With communication interface analogue :no With communication interface AS-Interface :no With communication interface CANOpen :no With communication interface DeviceNet :no With communication interface Ethernet :no With communication interface INTERBUS :no With communication interface PROFIBUS :no With communication interface RS-232 :no With communication interface RS-422 :no With communication interface RS-485 :no With communication interface SSD :no With communication interface SSI :no Electrical connection type :M12 connector Equipment protection class :Protection class 2 Explosion protection category for gas :none Explosion protection category for dust :none Enclosure type :cylinder, thread Diameter of sensor :18 mm Length of sensor :72 mm Material of optical surface :plastic Material of enclosure :metal Ambient temperature :-10..60 °C Rated control supply voltage Us at DC :10...36 V Voltage type :DC With monitoring function of downstream devices :no Laser protection class :Class 1 Wavelength of the sensor :655 nm Light type :Laser diode, red light With restart interlock :no Suitable for safety functions :no Protection class (IP) :IP66/IP67 Ifm Electronic through-beam sensor DC OGS700: further details Optical sensors, through-beam sensor, M18 x 1, threaded design, range 60 m, 2-wire, DC, operating voltage: 10...36 V DC, current consumption: 13 mA, plug connection, M12 plug connection, visible laser light, LASER CLASS 1, material housing: V4A (1.4404) PA EPDM, material optics: PMMA , EAN: 4021179173223.
