Product details

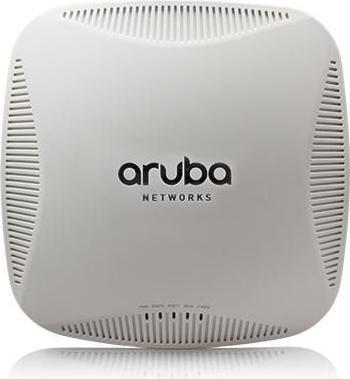

The ultra-fast 802.11ac APs of the 220 Series deliver top performance in high-density environments and can be managed via a Mobility Controller or deployed without a controller in Aruba Instant Mode.
With 1.3 Gbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band, these APs with three data streams are up to three times faster than 802.11n APs.
The AP-215 and IAP-215 models feature six integrated omnidirectional downtilt antennas, while the AP-214 and IAP-214 models have three RP-SMA connectors for external dual-band antennas.
Not only faster but also smarter.
With AppRF and ClientMatch, the APs of the 210 Series protect mission-critical applications and prevent "sticky" clients during roaming.
Compatible with Aruba Bluetooth Beacons.
Connect Aruba Beacons to any USB port on the 210 Series to enable centrally managed indoor location services.
Two hands are better than one.
A second Gigabit Ethernet port on the 220 Series doubles the network's backhaul capacity and serves as a redundant connection.
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Wi-Fi frequency band | Dual band |
PoE Standard | 802.3af (PoE), 802.3at (PoE+) |
Area of application | Indoor |
Number of RJ45/LAN ports | 2 |
Max. port speed | 1000 Mbit/s |
Item number | 22687312 |
Manufacturer | HPE |
Category | Access points |
Manufacturer no. | JW175A |
Release date | 28.4.2022 |
Number of antennas | 6 x |
Antenna gain | 4.50 dB |
Number of RJ45/LAN ports | 2 |
Max. port speed | 1000 Mbit/s |
Access Point Functions | PoE capable |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
5 GHz transfer rate | 1300 Mbit/s |
Wi-Fi frequency band | Dual band |
Area of application | Indoor |
Power supply | PoE |
PoE Standard | 802.3af (PoE), 802.3at (PoE+) |
Power consumption | 17 W |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 20.30 cm |
Width | 20.30 cm |
Height | 5.40 cm |
Weight | 750 g |
