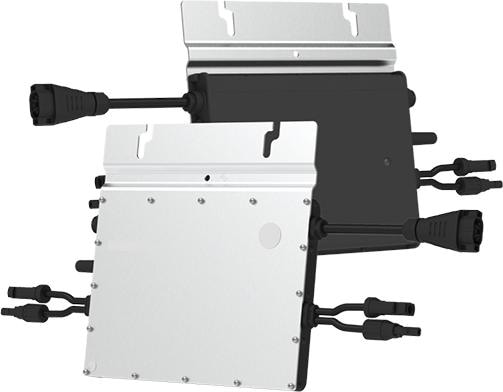

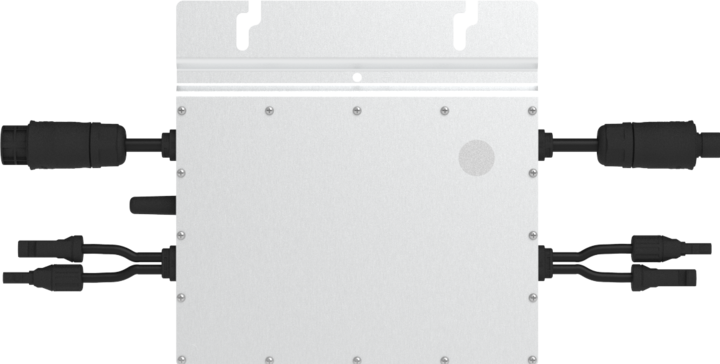

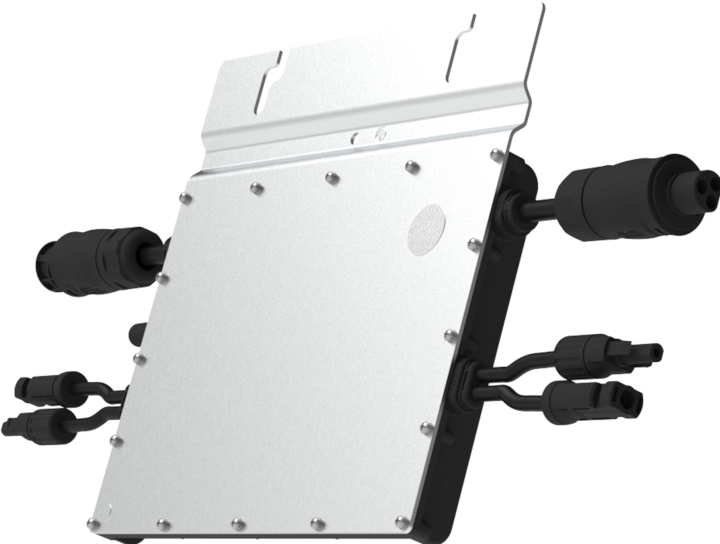

Hoymiles HM-800 Microinverter

High-quality energy generation with high MPPT accuracy. High maximum continuous output power of 800 W. High reliability and long lifespan. The HM-800 from Hoymiles is the perfect micro-inverter for your balcony power plant. This compact lightweight (only 3 kg including the 2.06 m AC cable) is suitable for solar power production with up to two solar panels with a total power of 440 W. Just like all other micro-inverters from Hoymiles, it is designed for long operating hours and a wide range of PV module applications, as its startup voltage is very low (only 22 V) and the DC input voltage range (16-60 V) is extremely broad.

PV systems with Hoymiles micro-inverters are very easy to plan and install. You can combine different types of PV modules in any orientation and in any desired quantity (maximum number of devices in series: 6). There is no need to install cumbersome traditional inverters. Each micro-inverter can be quickly mounted on the PV mounting frame or directly under the PV module. The PV module is connected directly on-site to the micro-inverter, eliminating the risk of individuals being exposed to dangerously high DC voltage. The AC side features battery connectors, while the DC side has MC-4 connectors.
