Product details
Temperature min. = +50°C
Temperature max. = +150°C
Opening temperature = +90°C
Thermostat type = Bimetal
Switching configuration = Normally closed
Contact rating = 10 A
Nominal contact voltage = 250 VAC
Connection type = Solder connection

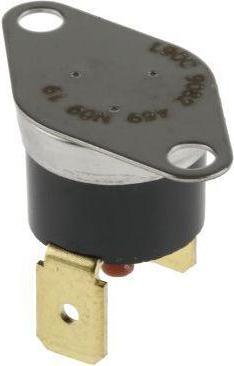

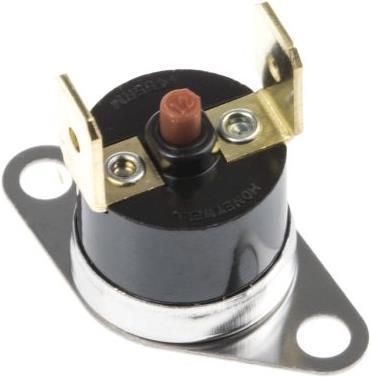

UL approval, CSA approval. Bimetallic thermostat with manual reset. Designed for applications requiring over-temperature status indication. Bimetallic latching disc, electrically and thermally isolated from the switch, actuates normally closed contacts. Manual reset can operate at approximately 70% of opening temperature. Dust-tight phenolic housing with heat-sensitive disc held in place by a heat-conductive stainless steel end cap. 1/4" spade terminal. Contacts are rated 250 V AC, 10 A, with a maximum contact resistance of 50 mΩ. Dielectric strength: 2,000 V AC.
Item number | 9722548 |
Manufacturer | Honeywell |
Category | Thermostats |
Manufacturer no. | 2455RM 9082-469 L90C |
Release date | 24.9.2018 |
External links |
Temperature range | -50° - 150° C |
CO₂-Emission | |
Climate contribution |
Length | 14.70 cm |
Width | 8.70 cm |
Height | 1.60 cm |
