HMS Gateway LAN, Modbus, RS-232, RS-485 Anybus AB7702 12 V/DC, 24 V/DC

Ratings
BrandMore from HMS
Delivered Mon, 9.6.
More than 10 items in stock at third-party supplier
Supplied by
Conrad CH

Product details

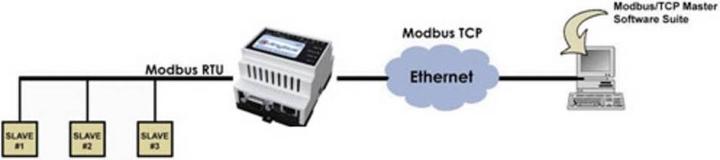

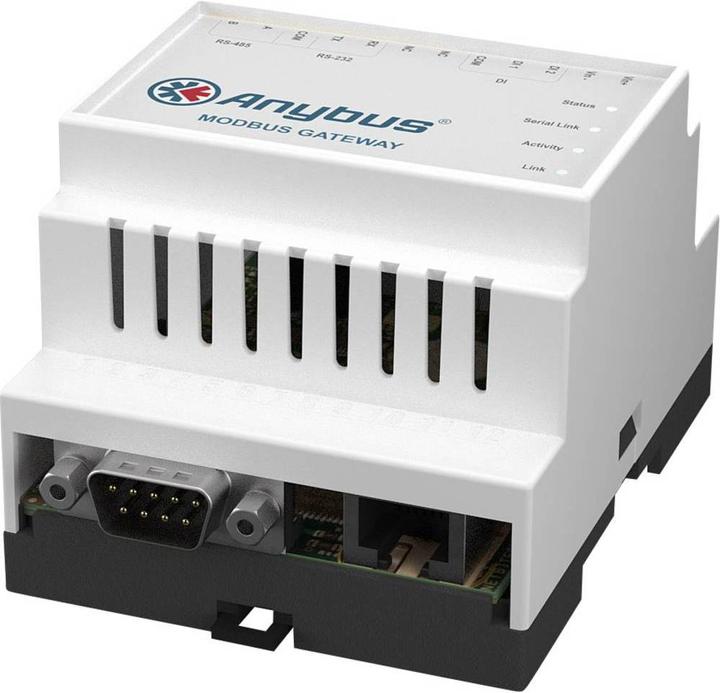

Description Gateway: Modbus-RTU / Modbus-TCP. Transparent data exchange between a Modbus-TCP client (Master) and Modbus-RTU slaves. Acts as a server (Slave) on the Modbus-TCP side. Supports 10/100 Mbit Ethernet (Modbus-TCP). On the Modbus-RTU side, it supports RS-232 and RS-485. Easy configuration (Node Address, IP address, etc.). This Modbus gateway implements a server (Slave) on the Modbus-TCP side. The gateway transparently forwards Modbus-TCP telegrams to the Modbus-RTU slaves connected to it. Requests from a Modbus-TCP client (Master) to the slaves in the Modbus-RTU network are converted by the gateway to Modbus-RTU. Conversely, response telegrams from the Modbus-RTU slaves are also transparently passed through by the gateway for the Modbus-TCP client. Thus, this Modbus gateway allows Modbus-TCP clients to communicate with one or more Modbus-RTU slaves. The physical connection of the Modbus gateway to Modbus-RTU is made via a 9-pin D-sub connector for RS-232 and an RJ12 connector for RS-485. The connection to the Ethernet side (Modbus-TCP) is done via a standard RJ45 connector. Technical specifications: Operating voltage: 9 - 32 V/DC. Operating temperature (range): -40 to 65 °C. Operating temperature (max.): 65 °C. Operating temperature (min.): -40 °C. Product dimensions, width: 86 mm. Product dimensions, height: 70 mm. Type (manufacturer type): AB7702. Additional technical data: Modbus-TCP baud rate: 10 - 100 Mbit/s. Modbus-RTU baud rate: up to 155 kbit/s. Protection class: IP20. Configuration via: IPconfigTool and web browser. Serial interfaces (Modbus-RTU): RS-232, RS-485. Housing: plastic housing (IP20).

Key specifications

Max. port speed
100 Mbit/s
Network connections
RJ45 (1x)
Switchtype
DIN Rail Switch
Item number
22430039

General information

Manufacturer
HMS
Category
Network switches
Manufacturer no.
AB7702
Release date
19.4.2021

Switch properties

Switchtype
DIN Rail Switch
Manufacturer Type
Anybus AB7702

Network connections

Network connections
RJ45 (1x)
Max. port speed
100 Mbit/s
Max. port speed RJ45
100 Mbit/s
Max. Port speed
100 Mbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
24 V/DC 1pc., Anybus AB7702 AB7702 Gateway LAN, Modbus, RS-232, RS-485 12 V/DC

Product dimensions

Length
7 cm
Width
8.60 cm
Height
7 cm
