HHG Villa AP Set 1

HHG set with AS AP 1-Fam Villa AP Set 1.

Manufacturer: HHG

Description: Set with AS AP 1-Fam Type: Villa AP Set 1.

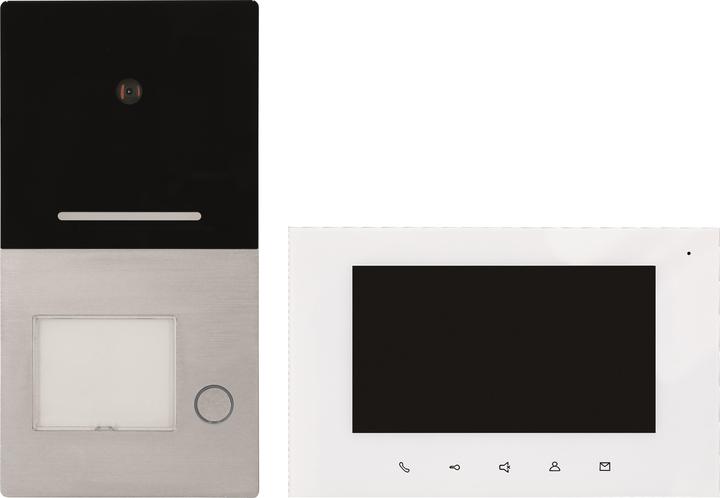

This single-family set includes a video 2-wire hands-free system, consisting of a surface-mounted door station and a bell push button. The door station features an aluminum housing, manual volume control, a camera with 1.0 megapixel resolution, and a detection field of 110°. It also includes a day/night module with LED illumination, a bell push button with an LED illuminated nameplate, connection terminals for the bus line, a potential-free door release contact, a potentiometer for door release time, and a maximum load capacity of 1 A at 24 V (DC) / 12 V (AC). Additional features include an LED call display and the option to connect an external door release button. Dimensions: 192 x 100 x 22 mm.

The set also includes a Villa M touch-screen 7-inch color monitor, which is wall-mounted and features hands-free functionality, a microphone, a loudspeaker, a speech button, a door release button, and intercom capabilities. It is suitable for parallel operation and has connection options for a floor button and an external door release button. The monitor allows for call volume adjustment, different ringtones, and brightness and contrast settings. It can differentiate between internal calls, door station calls, or floor button calls, and includes image recording with automatic screenshot capabilities. An SD card connection (2-32 GB) is available for video recordings, and up to 4 monitors can be connected in parallel per bell button. Color: white.

Additionally, the set includes a Villa NG top-hat rail power supply unit for distributor installation, with an input of 230 V and an output of 30 V DC for the bus line. It features a status LED and dimensions of 144 x 90 x 64 mm / 8 TE.

EAN: 6972733910236.
