−12%

Helos FTTH connection set, pre-assembled with SC-APC connectors on both sides, 50m

UTP, CAT6, 50 m
was CHF32.70 CHF0.57/1m
Ratings
Delivered between Fri, 13.6. and Tue, 17.6.
More than 10 items in stock at supplier

Product details

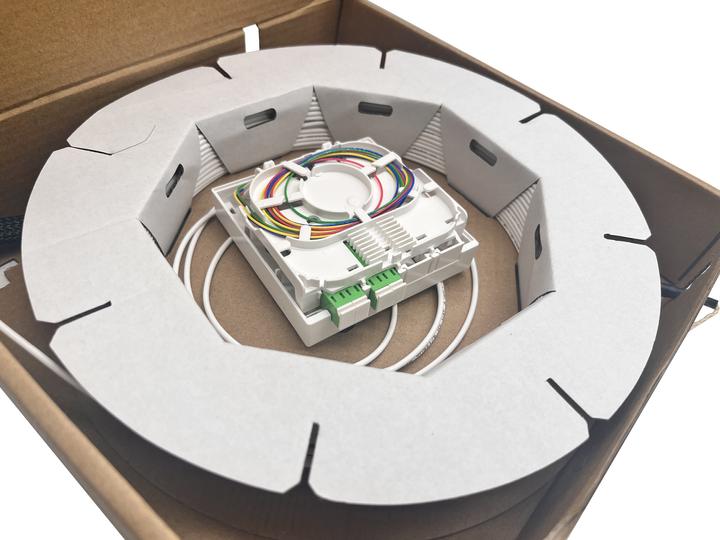

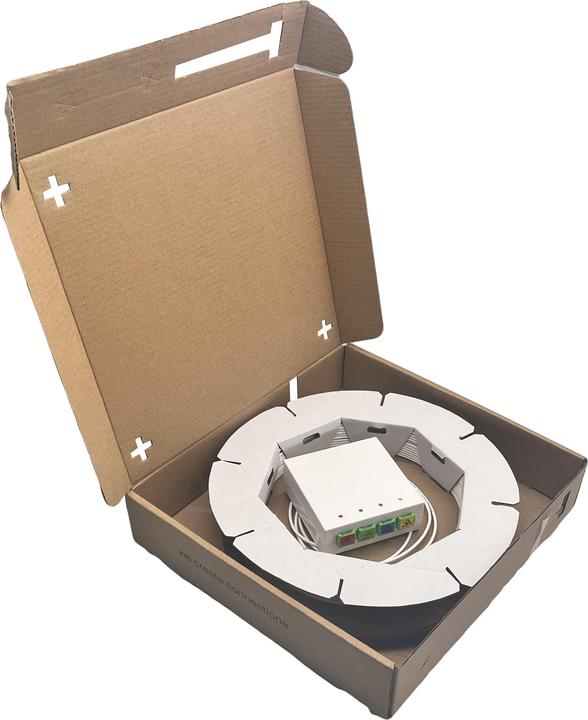

Helos FTTH connection set, OS2 4-core, pre-terminated on both sides with 4 SC-APC connectors each. This compact FTTH connection set is pre-terminated on both sides, eliminating the need for complex connector assembly. The installation is ideal for a fast high-speed fiber optic connection within the building. Available in various lengths and configurations. Short installation time: The single-sided pulling aid allows the fiber optic cable to be quickly routed to the desired location. No complicated splicing of the fiber optic connectors is required anymore.

Technical details:

  • 4-core installation cable OS2 9/125, G657.A2 LSZH
  • Fire protection class: CPR B2ca – s1a, d0, a1
  • Strain relief
  • Coupling: 4 x SC/APC Simplex
  • Connectors: 8 x SC/APC
  • Standards: IEC 61300-3-4, IEC 6130-3-6
  • Cable: G657.A2 4C 250um yellow, green, blue, red with KEVLAR jacket LSZH OD: 2.2mm
  • Color: white

Technical details of the connection box:

  • 4 SC/APC Simplex couplings, laser protection
  • Wall-mounted
  • RoHS 3.0 and REACH compliant
  • Temperature: -40 to +75
  • Max. 8 cores (crimping type)
  • ABS material
  • UL94V2
  • Color: white
  • Dimensions: 80*80*28mm.

Key specifications

Patch cable type
Fibre optic cable
Contact assignment
crossover
Fibre type
Single Mode
LWL plug connectors
SC/APC
Item number
42838248

General information

Manufacturer
Helos
Category
Network cables
Manufacturer no.
372094
Release date
8.2.2024

Colour

Cable colour
White

Material

Material
ABS
Material of the isolation
LSZH

Cable properties

Connection A
SC/APC
Connection B
APC
Cable Application
Network
Plug type
Gold-plated contacts
Cable connection
Connection (m/m)
Temperature range
-40° - 75 °C

Patch cable properties

Patch cable type
Fibre optic cable

Twisted-pair cable properties

Cable category
CAT6
Contact assignment
crossover
Shield
UTP

Fibre-optic cable properties

Fibre type
Single Mode
LWL plug connectors
SC/APC
Number of fibres
4 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1 piece

Product dimensions

Diameter
28 mm
Length
50 m
Width
80 mm
Depth
28 mm
