Hekatron Kohlenmonoxid-Melder

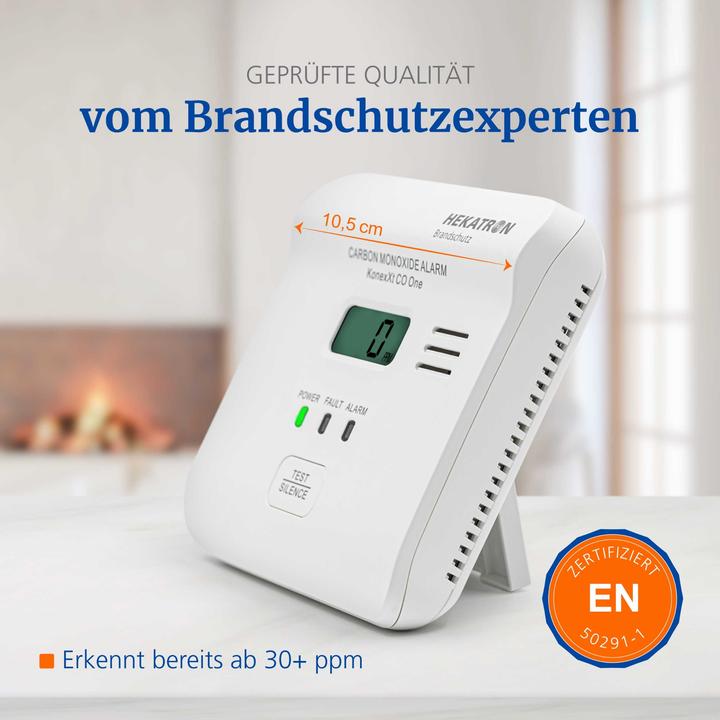

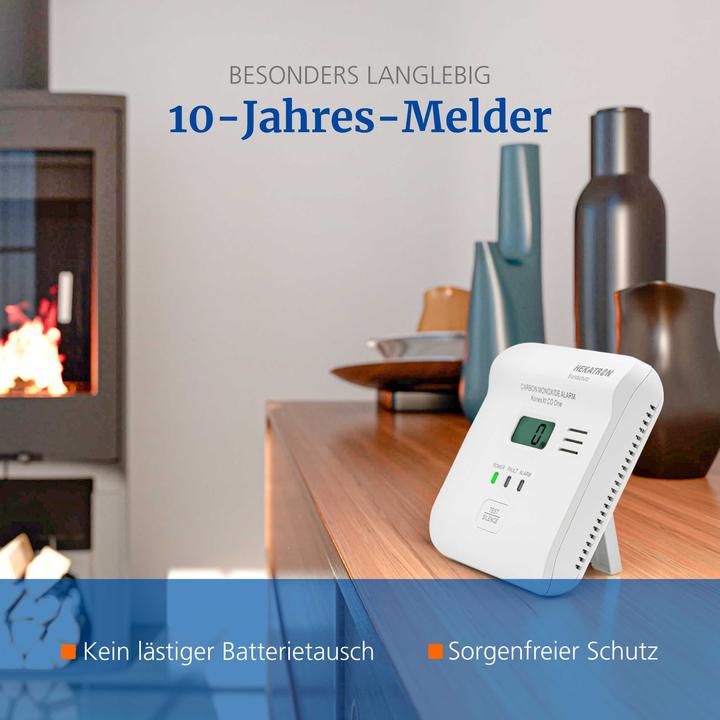

The KonexXt CO One carbon monoxide alarm from Hekatron detects carbon monoxide (CO) in the ambient air. The electrochemical sensor is designed for a service life of up to 10 years from commissioning. If the CO concentration in the room air rises, an 85 dB loud alarm is triggered. The alarm LED also flashes. The measured CO value is shown on the display.

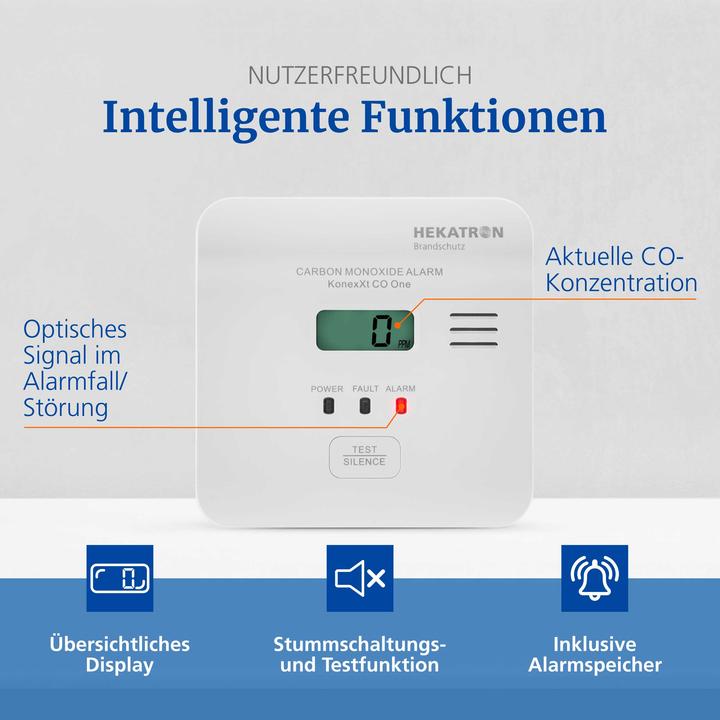

In addition to the ALARM LED, the KonexXt CO One CO detector also has an error LED (FAULT) and an operating LED, which indicates that the detector is ready for operation; the green LED flashes approx. every 40 seconds.

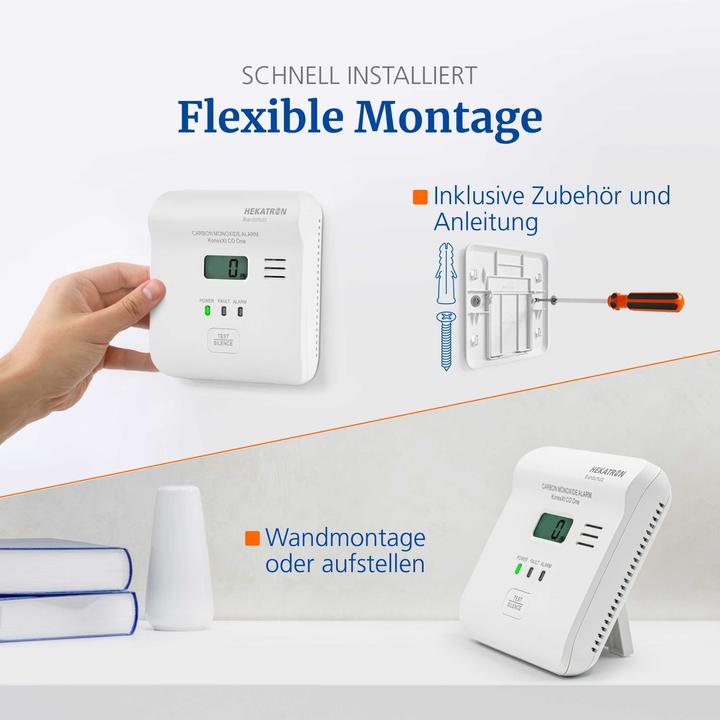

The CO alarm can be regularly checked for its function using the test button. In the event of an alarm, the test button can also be used to mute the alarm; however, the alarm can only be muted up to a maximum measured CO value of 150 ppm. When positioning the carbon monoxide detector, you can choose between wall mounting or desktop installation. The detector should be positioned between 1 m and max. 3 m away from the CO hazard source. During commissioning, the detector must be pushed onto the mounting plate. All 3 LEDs then light up briefly.
