Heatit HEAE5430566 - Z-TRM6 Thermostat Z-Wave 800 series (White RAL 9003)

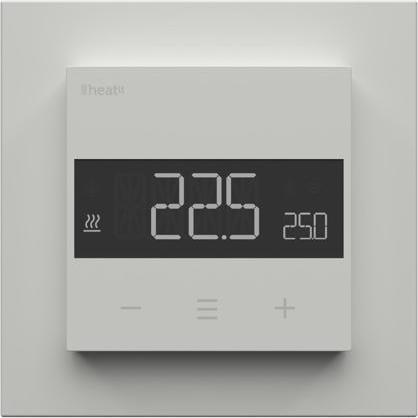

Heatit Z-TRM6 is an electronic thermostat for electric heating systems. The thermostat can be controlled via your Z-Wave network or through the buttons on the front. It features a user-friendly interface.

The Heatit Z-TRM6 offers 3 modes: Heating, Cooling, and Eco.

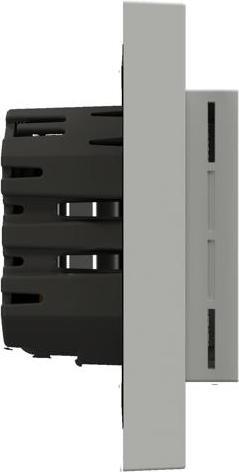

This thermostat fits into standard European junction boxes and can be used with most System 55 frames. It has a sturdy metal frame for secure mounting to the junction box. The thermostat includes a built-in room temperature sensor and can connect two additional external temperature sensors.

The Heatit Z-TRM6 features active power measurement, allowing users to see real-time energy consumption. When connected to a relay, the power measurement value can also be manually adjusted.

This product utilizes ZeroX technology, which ensures that the relay switches to 0 V when turning on and off. This significantly extends the lifespan of the thermostat.

The thermostat can be configured with multiple assignments and used as a master thermostat. It can control up to 10 thermostats and 10 external relays, such as sockets.

Features:

• Internal room sensor
• External room sensor (wired)
• Floor sensor
• Power regulator
• Temperature limiter
• 3 modes: Heating, Cooling, and Eco
• Hysteresis/PWM temperature calibration
• Open window detection
• ZeroX detection
• Relay status indicator
• Adjustable display brightness
• Single-pole switch
• Lock mode/Child safety
• Active power measurement
• SmartStart
• Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class
• IoT Protocol: Z-Wave - 868.4 MHz (EU)
• Voltage: 230 VAC 50Hz
• Maximum load (Watts - resistive load): 3600
• Standby power consumption (Watts): 2.
