Hagor VWH-1-small video wall mount pop out for displays 86-101cm 34-40 inch fine adjustment depth...

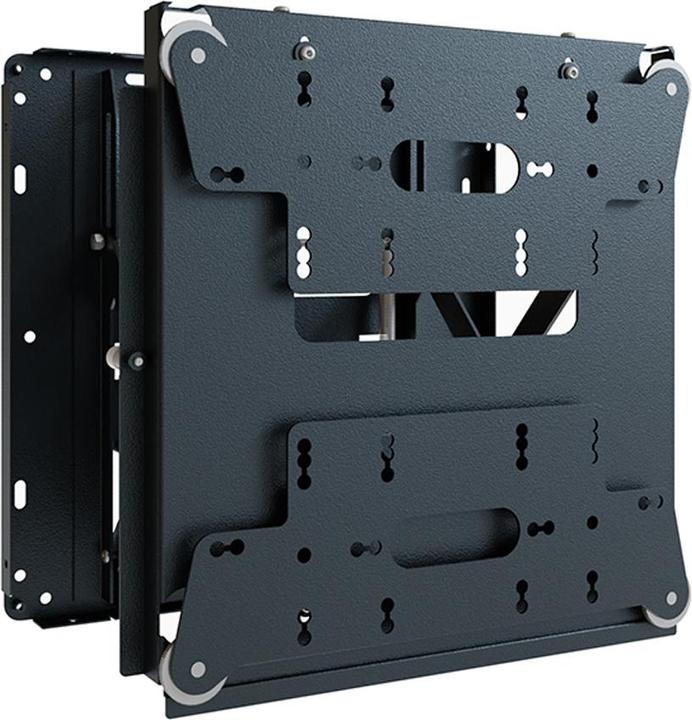

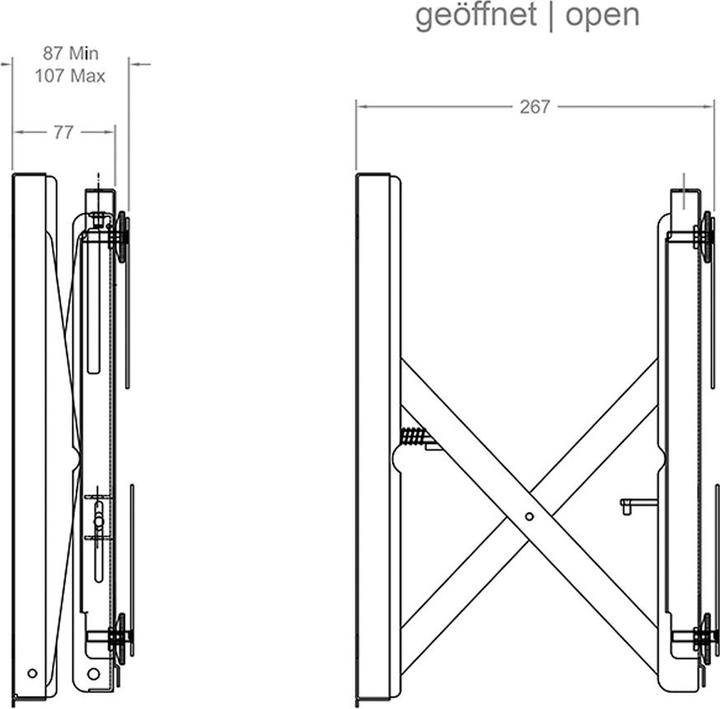

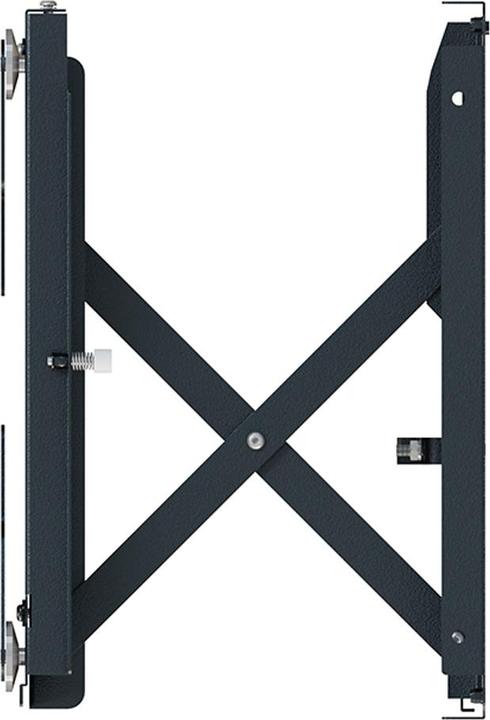

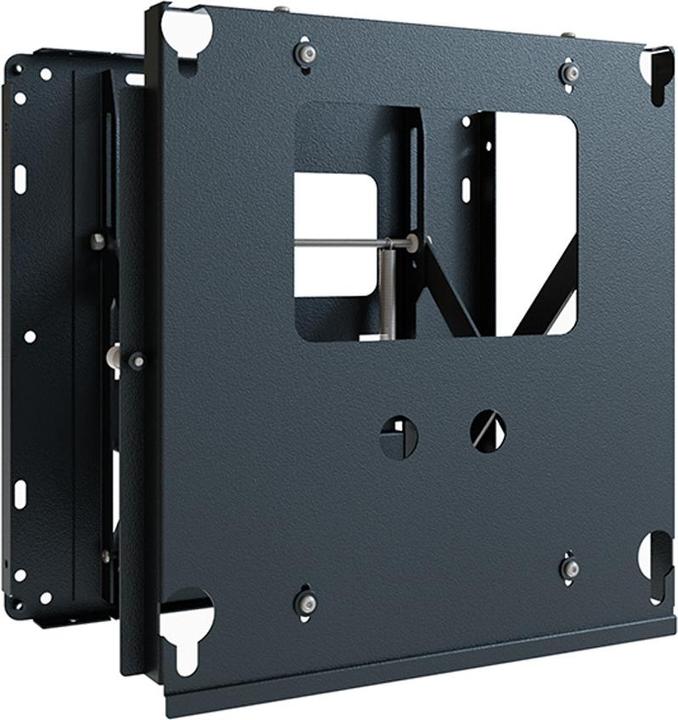

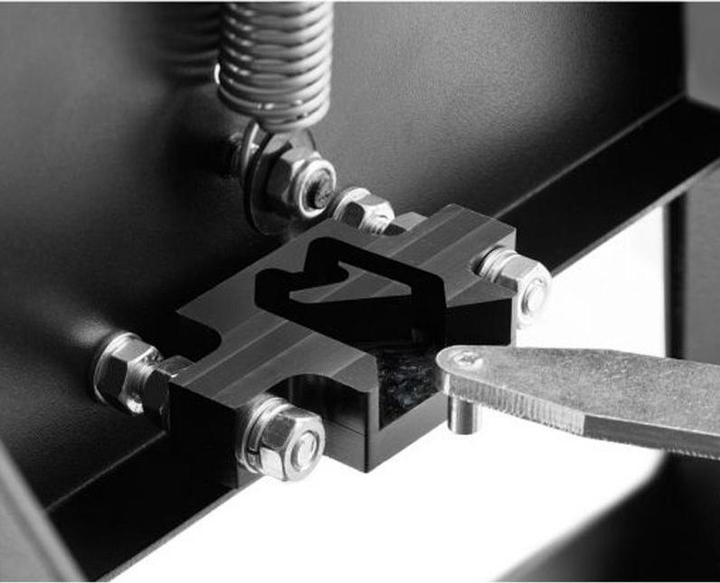

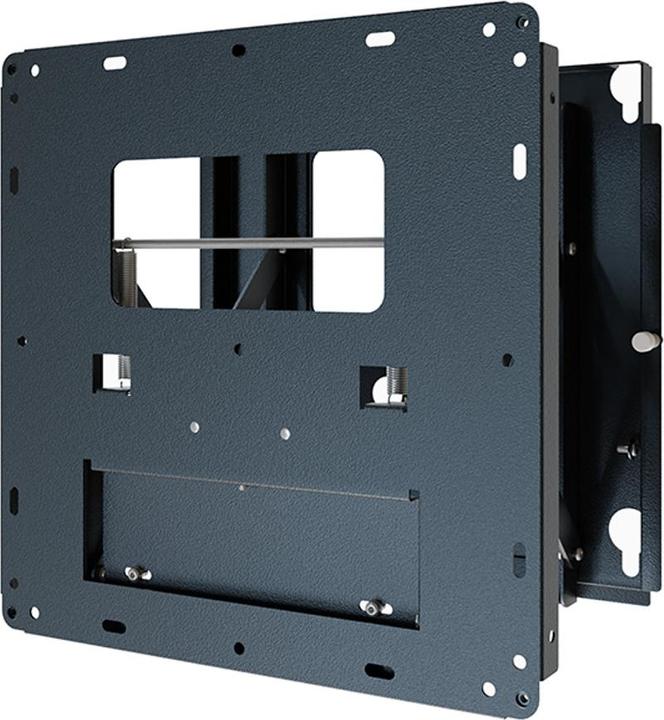

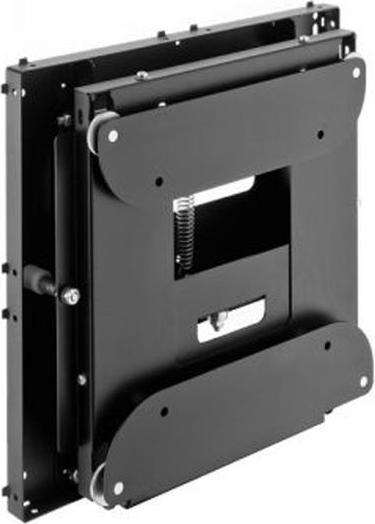

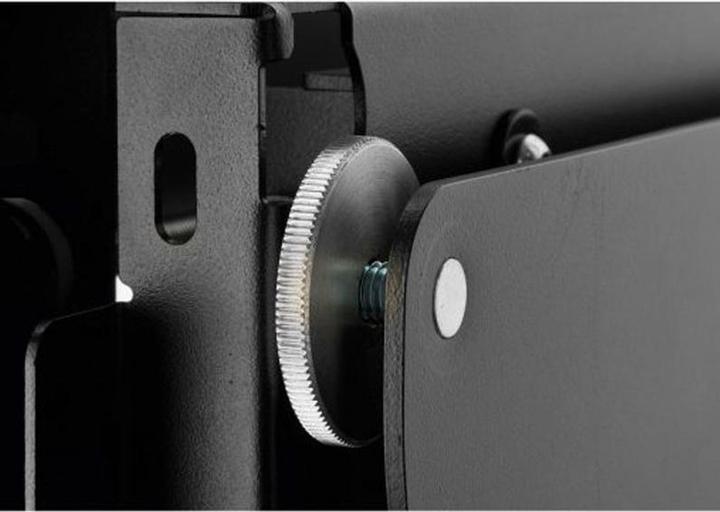

The VWH-1 Small is a full-service video wall mount with a pull-out function. This mount is suitable for screens ranging from 32 to 40 inches (81 to 102 cm) for creating a video wall, specifically designed for bezel-less displays. The screen can be mounted in either landscape or portrait orientation. The VESA mount supports VESA standards of 100 x 100 mm and 200 x 200 mm. Thanks to its modular design, unlimited video wall configurations can be implemented. The stable pull-out mechanism (scissor technology) allows for a variable wall distance of at least 87 mm to a maximum of 267 mm. The pop-out mechanism ensures optimal service accessibility. The mount features level adjustment for depth and height, as well as the ability to shift the screen left and right for optimal alignment. The maximum load capacity is 20 kg.

Technical Data:
Manufacturer: Hagor
Product Group: Wall Mounts
Product Type: Video Wall Mount
Color: Black
Maximum Load Capacity: 20 kg
Tiltable: No
Height Adjustable: No
Rotatable: Yes
Max. Screen Diagonal (cm): 102 cm
Max. Screen Diagonal (inches): 40 inches
Min. Screen Diagonal (cm): 81 cm
Min. Screen Diagonal (inches): 32 inches
VESA 100 x 100 mm: Yes
VESA 200 x 200 mm: Yes
Material Group: Metal

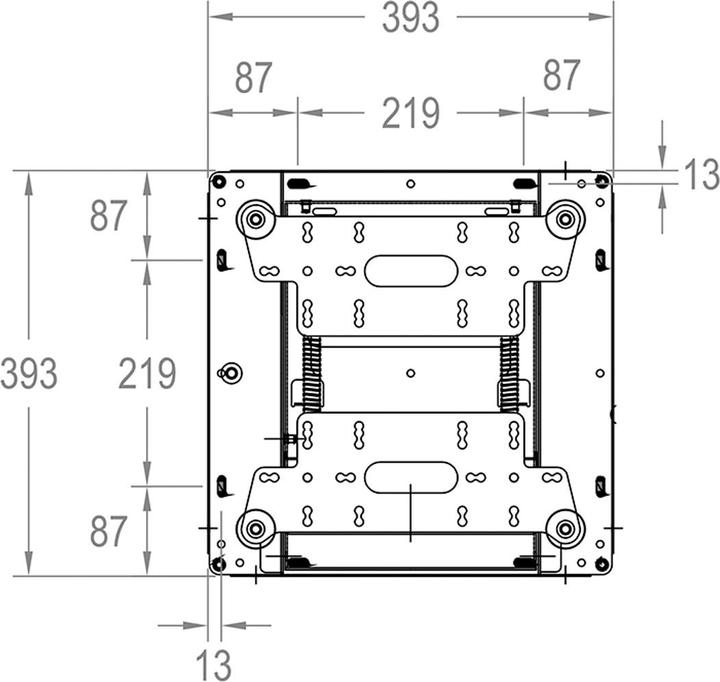

Height: 393 mm
Width: 393 mm
Depth: 90 mm
Weight: 10.6 kg
Package Weight: 10.6 kg
Gross Weight: 10.6 kg.
