Hagor BrackIT L - Mounting kit (wall mount) for LCD display - lockable - S

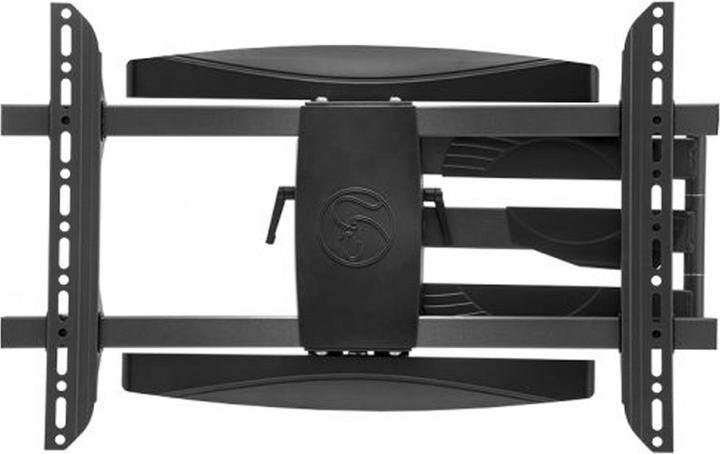

The tiltable and swiveling wall mount BrackIT L is suitable for single screens between 32 and 55 inches (81 – 140 cm screen diagonal). The installation can be done in either landscape or portrait orientation using the included VESA universal mount, up to a maximum of VESA 600 x 400 mm. The tilt angle of the mount can be adjusted continuously between -2° and +12°. Locking in the desired position is achieved through two side rotary handles. Depending on the size of the mounted screen, the mount can swivel up to ± 90°. A subsequent leveling adjustment of ± 5° is possible on the installation side. The wall distance can be adjusted using the extension from a minimum of 63 mm to a maximum of 703 mm. Cable management is done along the support arms using cable clips, ensuring that the cables are neatly arranged and do not interfere with the movement of the mount. The maximum load capacity is 30 kg.

Technical Data:
Manufacturer: Hagor
Product Group: Wall Mounts
Product Type: Wall Mount
Color: Black
Maximum Load Capacity: 30 kg
Tiltable: Yes
Height Adjustable: No
Rotatable: Yes
Max. Screen Diagonal (cm): 140 cm
Max. Screen Diagonal (inches): 55 inches
Min. Screen Diagonal (cm): 81 cm
Min. Screen Diagonal (inches): 32 inches
VESA 200 x 100 mm: Yes
VESA 200 x 200 mm: Yes
VESA 300 x 200 mm: Yes
VESA 300 x 300 mm: Yes
VESA 400 x 200 mm: Yes
VESA 400 x 300 mm: Yes
VESA 400 x 400 mm: Yes
VESA 600 x 200 mm: Yes
VESA 600 x 400 mm: Yes
VESA 800 x 400 mm: No
Material Group: Metal
Height: 400 mm
Width: 600 mm
Depth: 703 mm
Weight: 8.5 kg
Package Weight: 8.5 kg
Gross Weight: 8.5 kg.
