Hager Presence detector

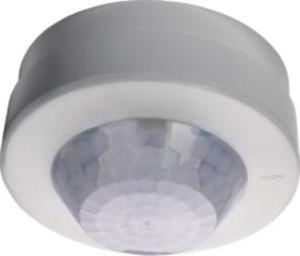

Hager presence detector TXC513
Manufacturer: Hager
Designation: Presence detector KNX 360G, surface 20m
Type: TXC513
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Radio bidirectional: No
Version: Presence detector
Mounting type: Surface-mounted
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With bus coupling: No
Extension input: No
Creep protection/back field monitoring: No
Operating mode switch: No
Animal track: Yes
Staircase monitoring: No
Adjustable response brightness: No
Teach function for response brightness: No
Self-learning switch-off delay: No
DALI-2 certified: No
Optimum mounting height: 2.5 m
Max. range to one side: 10 m
Max. range frontal: 5 m
Detection field diameter on floor: 20 m
Detection angle horizontal: 360°
No. of digital inputs: 1
No. of channels: 5
Switching capacity: 0 W
Min. duty cycle: 5 s
Max. switching time: 5 s
Max. duty cycle: 480 min
Min. depth of device box: 0 mm

Hager presence detector TXC513: further details
Presence/motion detector KNX 360°, surface mounting, detection Ø20m.
