Hager MCN340. Number of poles: 3P. AC input frequency: 50/60 Hz, Nominal current output: 40 A.

Ratings
Delivered between Wed, 16.7. and Fri, 25.7.
5 pieces in stock at supplier
free shipping

Product details

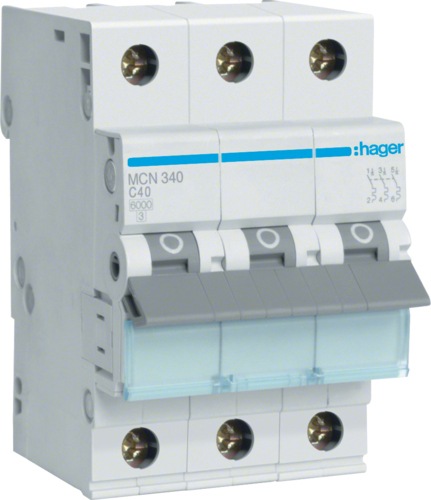

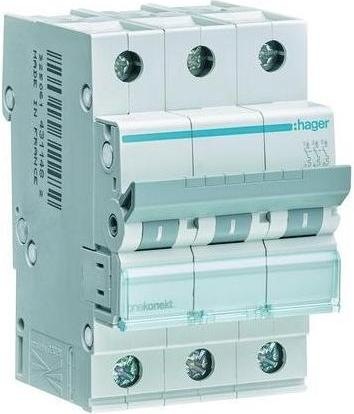

Hager Circuit Breaker MCN340

Manufacturer: Hager
Designation: 3-pole Circuit Breaker C-40A, 6kA
Type: MCN340
Installation Depth: 70 mm
Tripping Characteristic: C
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 40 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Type of Voltage: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50-60 Hz
Power Loss: 16.9 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25 to 70 °C
Connectable Conductor Cross-Section Multi-stranded: 1-25 mm²
Connectable Conductor Cross-Section Solid: 1-35 mm²
Explosion-Proof: no

Hager Circuit Breaker MCN340: additional details
3-pole circuit breaker 6kA C-characteristic 40A 3 modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
52.50 mm
mounting style
Flush-mounted
number of poles
3
Item number
19943291

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MCN340
Release date
14.3.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
3
Tripping characteristic
C
Rated current
40 A
Rated voltage
415 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IPX2

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
52.50 mm
Height
83 mm
Weight
370 g

Package dimensions

Length
8.30 cm
Width
7.20 cm
Height
5.30 cm
Weight
354 g
