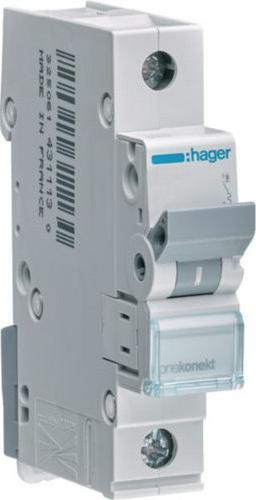

Hager MCN140. Rated current: 40 A. Type: C-type, Module quantity (max): 1 module(s). Width: 17.5 mm

Ratings
BrandMore from Hager
Delivered between Tue, 14.4. and Sat, 18.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Hager Circuit Breaker MCN140

Manufacturer: Hager
Designation: Single-pole circuit breaker C-40A, 6kA
Type: MCN140
Installation depth: 70 mm
Tripping characteristic: C
Number of poles (total): 1
Number of protected poles: 1
Rated current: 40 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Type of voltage: AC
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Frequency: 50..60 Hz
Power loss: 4.8 W
Energy limitation class: 3
Flush-mounted: yes
Switching neutral conductor: no
Overvoltage category: 3
Pollution degree: 2
Additional devices possible: no
Width in modular units: 1
Protection class (IP): IP20
Ambient temperature during operation: -25..70 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section single-stranded: 1..35 mm²
Explosion-proof: no

Hager Circuit Breaker MCN140: additional details
Single-pole circuit breaker 6kA C-characteristic 40A 1 module. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by releasing the DIN rail quick fastening.
EAN: 3250614311192.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
1
Width
17.50 mm

General information

Item number
20837819
Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MCN140
Release date
11.5.2022
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
1
Tripping characteristic
C
Rated current
40 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
17.50 mm
Height
83 mm
