Hager MCN116 Circuit breaker

Save CHF1.20
Ratings
Delivered between Fri, 20.6. and Wed, 2.7.
More than 10 items in stock at supplier

Product details

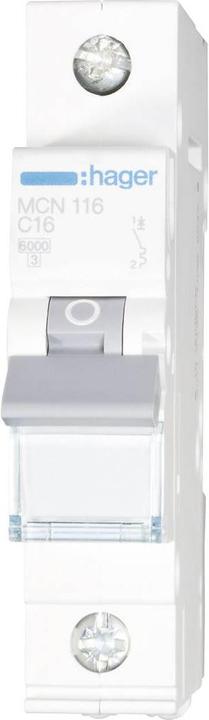

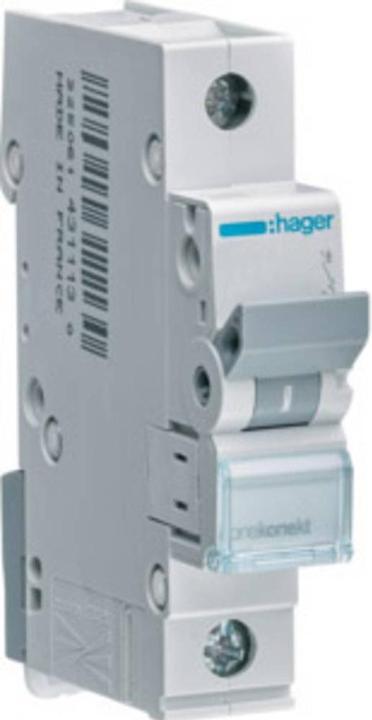

Hager Circuit Breaker MCN116

Manufacturer: Hager
Designation: Single-pole circuit breaker C-16A, 6kA
Type: MCN116
Installation depth: 70 mm
Tripping characteristic: C
Total number of poles: 1
Number of protected poles: 1
Rated current: 16 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage type: AC
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Frequency: 50..60 Hz
Power loss: 2.32 W
Energy limitation class: 3
Flush-mounted: yes
Switching neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in modular units: 1
Protection class (IP): IP20
Ambient temperature during operation: -25..70 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section single-stranded: 1..35 mm²
Explosion-proof: no

Hager Circuit Breaker MCN116: further details
Single-pole circuit breaker 6kA C-characteristic 16A 1 module. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by releasing the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
17.50 mm
mounting style
Top-hat rail
number of poles
1
Item number
8781968

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MCN116
Release date
25.5.2018
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
1
Tripping characteristic
C
Rated current
16 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
6000 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
17.50 mm
Height
80 mm
Weight
80 g

Package dimensions

Length
13.20 cm
Width
10.40 cm
Height
3.50 cm
Weight
94 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
