Quantity discount

Hager MBS106. Rated current: 6 A, AC input frequency: 50/60 Hz. Type: B-type, Module quantity (max): 1

Save CHF1.–
Ratings
Delivered between Thu, 26.6. and Fri, 4.7.
More than 10 items in stock at supplier

Product details

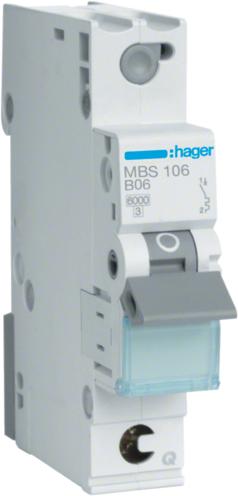

Hager Circuit Breaker MBS106

Manufacturer: Hager
Designation: Circuit breaker 1p B-6A, 6kA, 1M QC
Type: MBS106
Installation depth: 70 mm
Tripping characteristic: B
Number of poles (total): 1
Number of protected poles: 1
Rated current: 6 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage type: AC
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Frequency: 50-60 Hz
Energy limitation class: 3
Flush-mounted: yes
Switched neutral conductor: no
Overvoltage category: 3
Pollution degree: 2
Additional devices possible: no
Width in division units: 1
Protection class (IP): IP20
Ambient temperature during operation: -25 to 70 °C
Connectable conductor cross-section multi-stranded: 1-25 mm²
Connectable conductor cross-section solid: 1-35 mm²
Explosion-proof: no

Hager Circuit Breaker MBS106: additional details
Single-pole circuit breaker 6kA B-characteristic 6A QuickConnect 1 module. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 Part 11), outgoing up to 16A and incoming for distribution up to 63A, with time-delayed thermal tripping device for overload protection and electromagnetic tripping device for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
100 mm
Width
80 mm
mounting style
Flush-mounted
number of poles
1
Item number
20020795

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBS106
Release date
16.3.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
1
Tripping characteristic
B
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
100 mm
Width
80 mm
Height
230 mm

Package dimensions

Length
18.80 cm
Width
11.30 cm
Height
5.50 cm
Weight
97 g
