Hager MBN340. Number of poles: 3P. AC input frequency: 50/60 Hz, Nominal current output: 40 A.

Ratings
Delivered between Mon, 21.7. and Wed, 23.7.
7 pieces in stock at supplier
free shipping

Product details

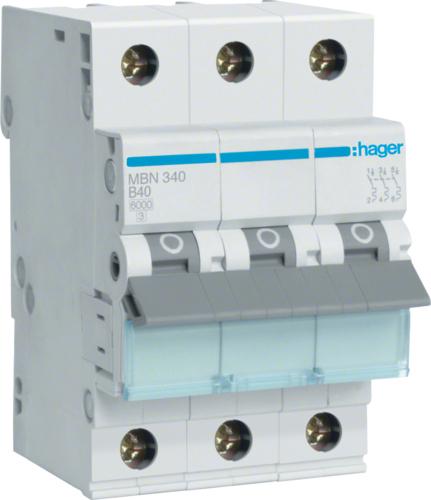

Hager Circuit Breaker MBN340

Manufacturer: Hager
Designation: 3-pole Circuit Breaker B-40A, 6kA
Type: MBN340
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 40 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50..60 Hz
Power Loss: 16.9 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Pollution Degree: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..70 °C
Connectable Conductor Cross-Section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-Section Single-stranded: 1..35 mm²
Explosion-Proof: no

Hager Circuit Breaker MBN340: further details
3-pole circuit breaker with 6kA B-characteristic, 40A, 3 modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by releasing the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
52.50 mm
mounting style
Flush-mounted
number of poles
3
Item number
18255736

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBN340
Release date
10.1.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
3
Tripping characteristic
B
Rated current
40 A
Rated voltage
415 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IPX2

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
52.50 mm
Height
83 mm
Weight
370 g
