Hager MBN116 Circuit breaker

Save CHF3.40
1Ratings
BrandMore from Hager
Delivered between Tue, 17.3. and Thu, 19.3.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

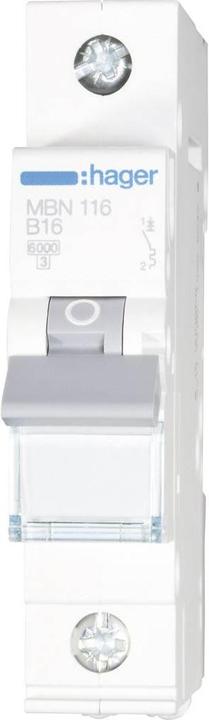

Hager Circuit Breaker MBN116

Manufacturer: Hager
Designation: Single-pole Circuit Breaker B-16A, 6kA
Type: MBN116
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 1
Number of Protected Poles: 1
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Rated Switching Capacity Icn according to EN 60898 at 230 V: 6 kA
Type of Voltage: AC
Rated Switching Capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 2.44 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: no
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..70 °C
Connectable Conductor Cross-section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-section Solid: 1..35 mm²
Explosion-Proof: no

Hager Circuit Breaker MBN116: additional details
Single-pole circuit breaker with 6kA B-characteristic, 16A, 1 module. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
67 mm
Width
90 mm

General information

Item number
8784842
Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBN116
Release date
25.5.2018
Sales rank in Category Residual-current device
10 of 16027
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
B
Rated current
16 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
5.24 kg
Climate contribution
CHF 0.12

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
67 mm
Width
90 mm
Height
83 mm
Weight
90 g

Package dimensions

Length
28 cm
Width
20 cm
Height
4 cm
Weight
90 g
